Ingersoll Cutting Tools 5120051 Replaceable Drill Tip 15mm

Product Description

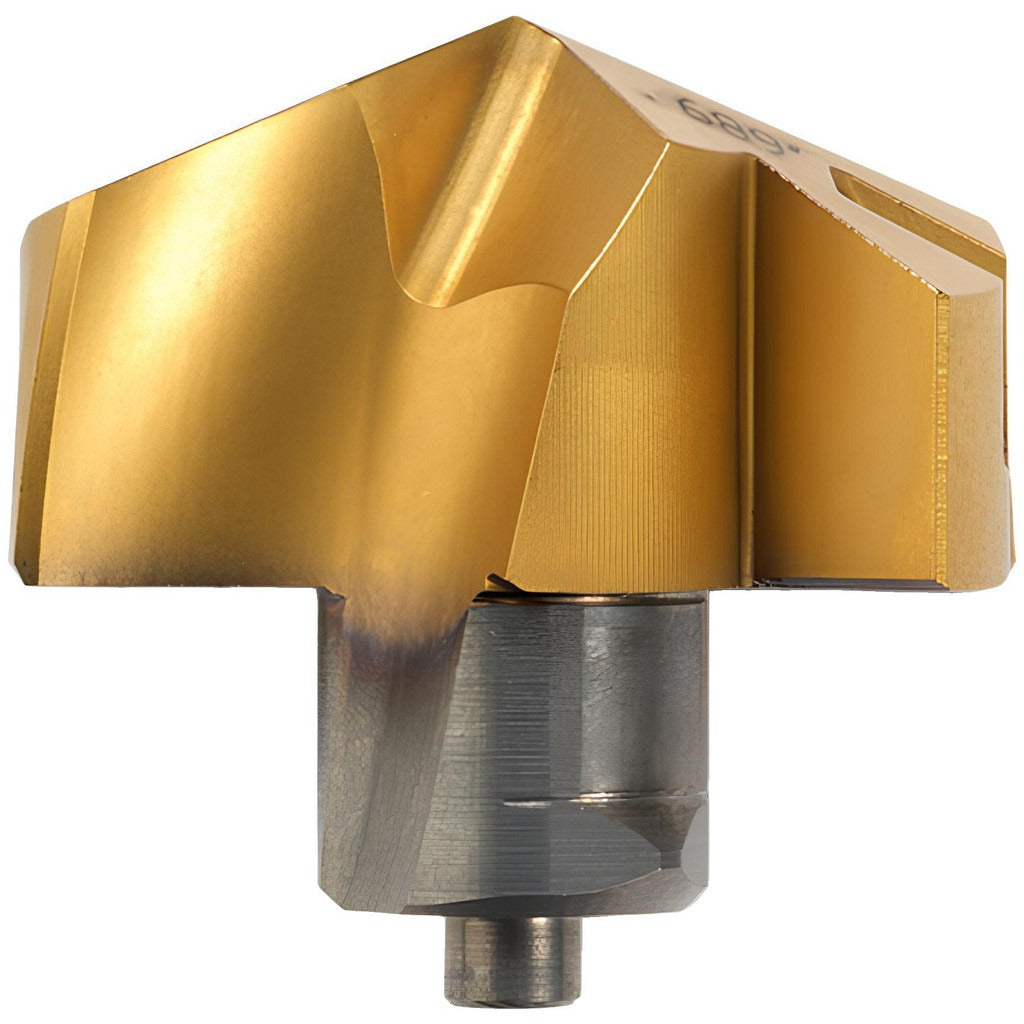

The INGERSOLL CUTTING TOOLS 5120051 is a replaceable drill tip designed for modular drilling systems in metal-cutting applications. Manufactured from solid carbide with a PVD-applied TiAlN/TiN dual coating, this tip delivers thermal resistance and wear performance suited to production drilling in steel. It measures 15.00 mm in cutting diameter with a 140-degree included point angle, a helical flute geometry, and a functional length of 0.2540 inches. Coolant-through capability allows cutting fluid to be delivered directly to the cutting edge, reducing heat buildup and improving chip evacuation in deep-hole and high-feed operations. It installs via a clamp-type holding method into a compatible TPA-series seat size 15 drill body.

This tip is intended for use in ferrous metal drilling, with a primary workpiece material designation of Steel (ISO material group P, grades P15 through P30). Typical applications include through-hole drilling, spot drilling, and coolant-through drilling in CNC machining centers and automated drilling stations. It conforms to ANSI standards and carries the ISO designation TPA1510R01 IN2505. The two-flute helical design with regular spiral promotes stable chip flow in steel at moderate to high cutting speeds. This tip is suited for shops running production volumes where insert-style tooling reduces downtime compared to solid regrindable drills.

Key Features

• Solid carbide substrate with PVD TiAlN/TiN coating for heat and wear resistance in steel cutting
• 140-degree point angle for reduced thrust force and accurate entry on flat or slightly angled surfaces
• Coolant-through design channels fluid directly to the cutting zone for chip evacuation and thermal control
• Two-flute helical geometry with regular spiral for consistent chip flow in ferrous materials
• Clamp-style insert holding for repeatable seating and fast tip changes without removing the drill body
• Manufacturer grade IN2505 optimized for ISO P15 to P30 steel applications

Compatibility

Designed for use with TPA-series modular drill bodies requiring an insert seat size 15. ISO designation TPA1510R01 IN2505 identifies the exact seat and tip geometry. Confirm seat size and series compatibility with the drill body before installation.

Installation Notes
