Ingersoll Cutting Tools 5120002 Replaceable Drill Tip 10mm

Product Description

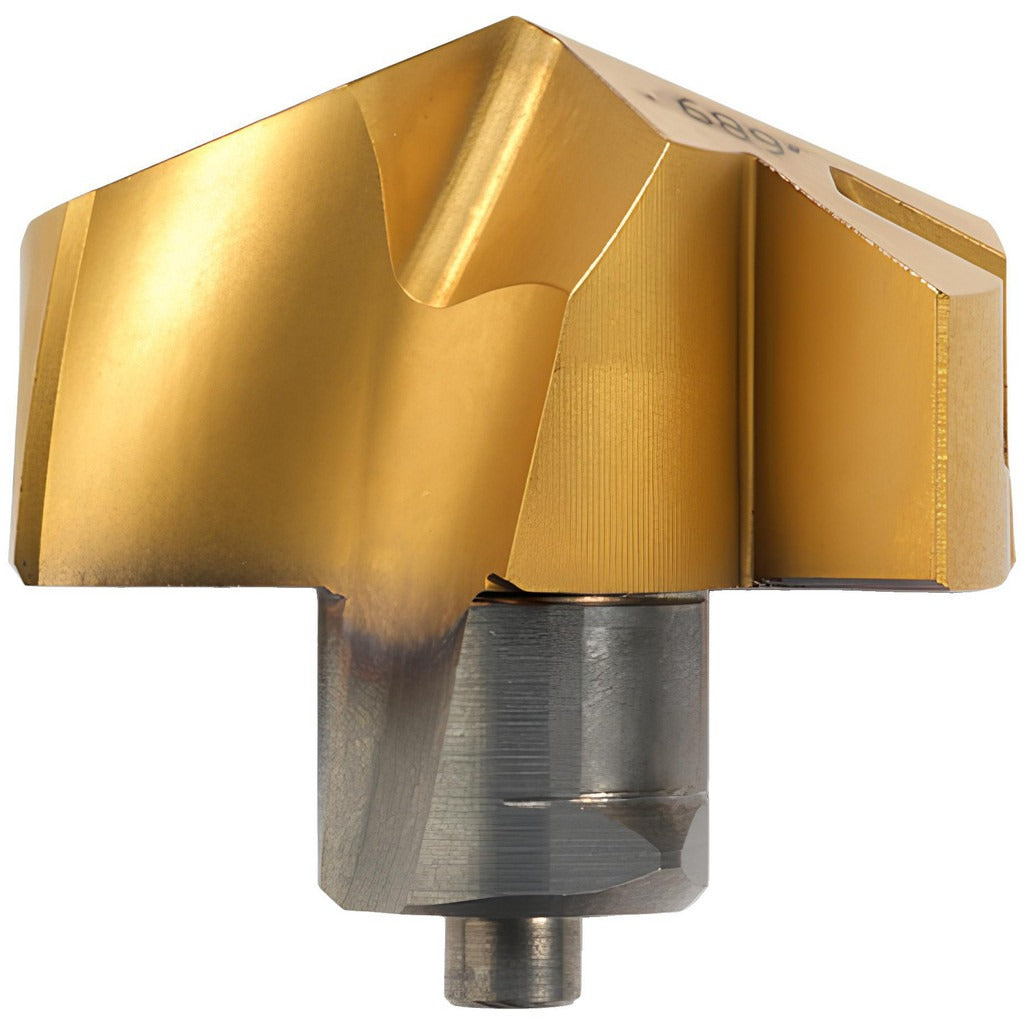

The INGERSOLL CUTTING TOOLS 5120002 is a replaceable drill tip designed for high-performance drilling applications in steel and similar workpiece materials. Built from solid carbide and finished with a PVD-applied TiAlN/TiN coating, this tip delivers wear resistance and thermal stability across demanding cutting cycles. It features a 140-degree drill point angle, a standard point type, and a regular helical spiral with two flutes. Coolant-through capability allows cutting fluid to reach the cutting zone directly, supporting chip evacuation and heat management. Manufactured to ANSI standards under ISO designation TPA1020R01 IN2505, this tip seats into size 10 insert seats and is held in place by a clamp-style holding method.

This replaceable drill tip is used in CNC machining centers and drilling operations targeting steel workpieces, classified under ISO material grade P15 to P30. It is suited for coolant-through drilling, spot drilling, and general drilling operations where a high-precision, interchangeable tip system is preferred over solid-body drills. The TPA series design allows worn tips to be replaced without discarding the drill body, reducing tooling cost over time in production environments.

Key Features

• Solid carbide construction for rigidity and wear resistance in steel cutting
• TiAlN/TiN PVD coating for improved heat resistance and tool life
• 140-degree included angle for standard drilling and spot drilling entry
• Coolant-through design for direct cutting zone cooling and chip evacuation
• Two helical flutes with regular spiral for efficient chip flow
• Clamp-style insert holding for secure tip retention during high-load cuts

Compatibility

Designed to fit insert seat size 10 tool bodies in the TPA series system, compatible with holders accepting ISO designation TPA1020R01 IN2505 tips. Intended for use on steel workpieces within ISO P15 to P30 material grade range.

Installation Notes

Installation and tool changes should be performed by a qualified machinist or toolroom technician with the machine fully powered down and in a safe state. Use the correct torque wrench and clamp hardware specified by the tool body manufacturer when seating the tip. Inspect the insert seat for debris or wear before installing a new tip to ensure proper seating and runout. Follow the tool body manufacturer guidelines for coolant-through pressure settings compatible with this tip configuration.
