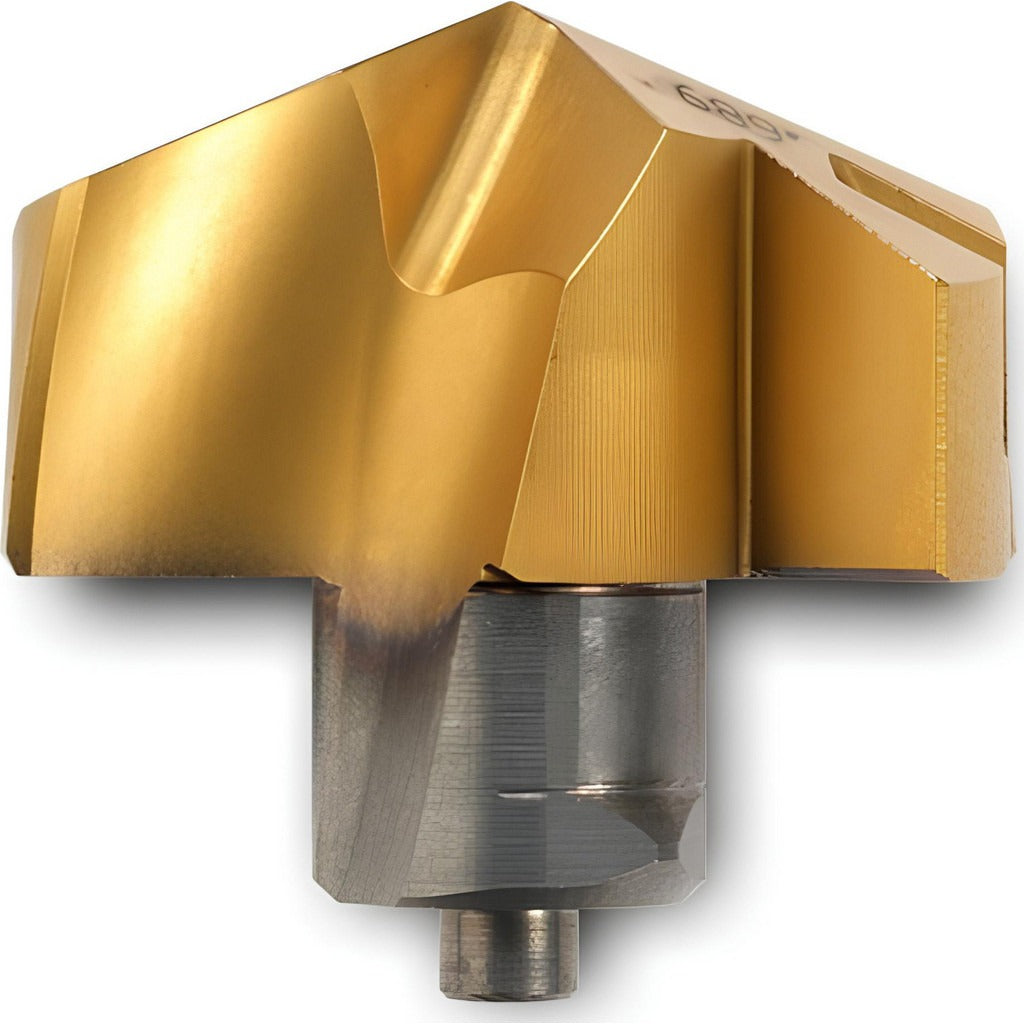

Ingersoll Cutting Tools 5101267 Replaceable Drill Tip Tpa

Product Description

The INGERSOLL CUTTING TOOLS 5101267 is a replaceable drill tip designed for high-performance drilling applications in steel and similar workpiece materials. Built from solid carbide and coated with TiAlN and TiN via a PVD process, this tip delivers extended tool life and thermal resistance at the cutting edge. It features a 140-degree point angle, a helical flute configuration, and integrated coolant-through capability, making it well suited for demanding production drilling environments. The tip seats into Size 22 insert seats and is held in place by a clamp-style insert holding method.

This drill tip is intended for use in CNC machining centers and drilling operations targeting steel workpieces, classified under material grade P15 to P30. It belongs to the TPA series and is designed for coolant-through, drilling, and spot drilling applications. The helical flute geometry promotes chip evacuation and the two-flute design supports stable cutting action in ferrous materials. It is installed and serviced by machinists and tooling technicians in production shop environments.

Key Features

• Solid carbide construction for rigidity and wear resistance in steel drilling
• TiAlN and TiN PVD coating for thermal protection and extended tool life
• 140-degree point angle with standard point type for accurate entry
• Integrated coolant-through design for heat management at the cutting zone
• Helical, regular spiral flute geometry for efficient chip evacuation
• Clamp-style insert holding method with Size 22 seat compatibility

Compatibility

Designed as a replaceable tip for TPA series drill bodies accepting Size 22 insert seats, conforming to ANSI standards. ISO designation TPA2260R01 IN2505.

Installation Notes

Installation of replaceable drill tips should be performed by a qualified machinist or tooling technician with the machine powered down and locked out per facility LOTO procedures. Ensure the insert seat is clean and free of debris before seating the tip, as contamination can affect runout and tip retention. Use the correct clamp torque tool specified by the toolholder manufacturer for Size 22 TPA seats. Inspect the seat and clamping components for wear at each tip change.
