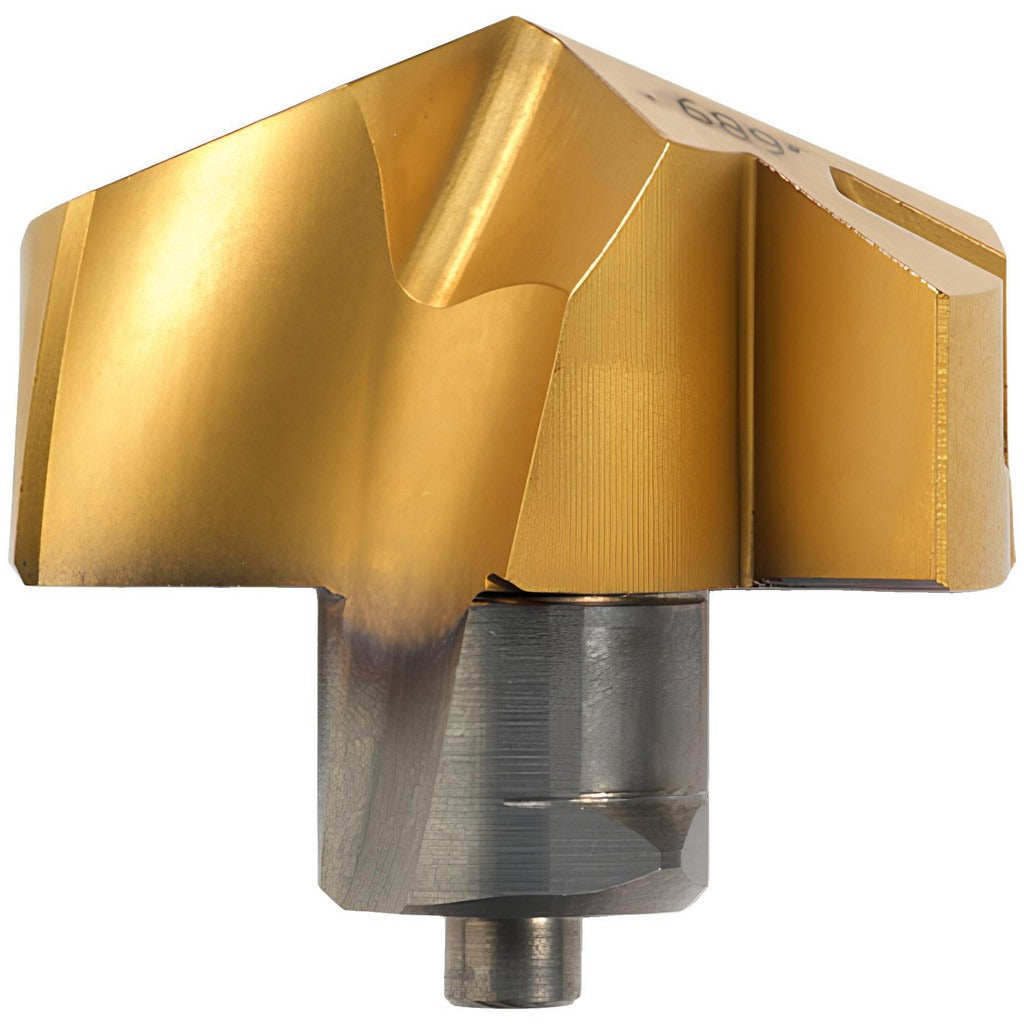

Ingersoll Cutting Tools 5101230 Replaceable Drill Tip 9mm

Product Description

The INGERSOLL CUTTING TOOLS 5101230 is a replaceable drill tip designed for indexable drilling systems used in metal cutting operations. Built from solid carbide and coated with TiAlN and TiN via a PVD process, this insert delivers wear resistance and thermal stability when machining steel. It features a 9.00 mm cutting diameter, a 140-degree point angle, and a standard helical flute geometry with two flutes. The tip is coolant-through capable, supporting internal coolant delivery to the cutting zone. Licensed machinists, tool-and-die technicians, and CNC machining professionals install this tip as a direct replaceable component within compatible modular drill bodies.

This replaceable drill tip is suited for drilling and spot drilling operations in steel workpieces, classified under ISO material group P (P15-P30). It fits within the TPA series modular drill system, mounting to a size 9 insert seat via a clamp-style holding method. The part carries ISO number TPA0900R01 IN2505 and conforms to ANSI standards. Typical applications include production drilling on CNC machining centers and turning centers where coolant-through tooling is required for chip evacuation and extended tool life in ferrous materials.

Key Features

• Solid carbide substrate in manufacturer grade IN2505 for hardness and thermal resistance in steel cutting
• TiAlN and TiN PVD coating for improved wear resistance and surface hardness
• 140-degree standard point angle with regular spiral, helical flute geometry
• Coolant-through design supports internal coolant delivery to the cutting edge
• Two-flute configuration with 4.00 mm flute length for efficient chip evacuation
• Clamp-style insert holding method for secure, repeatable seating in TPA series drill bodies

Compatibility

Designed for use with TPA series modular drill bodies requiring a size 9 insert seat. ISO number TPA0900R01 IN2505 confirms fitment within the TPA system. Optimized for primary workpiece material group P (steel, ISO P15-P30 classification).

Installation Notes

Installation is performed by CNC machinists or tooling technicians following the drill body manufacturer's clamping torque and seating procedures for indexable insert systems. Always power down and lock out the machine before indexing or replacing the tip. Inspect the insert seat for debris or damage before seating the new tip, as contamination will affect runout and tool life. Coolant-through port alignment should be confirmed after seating to ensure unobstructed internal coolant flow.
