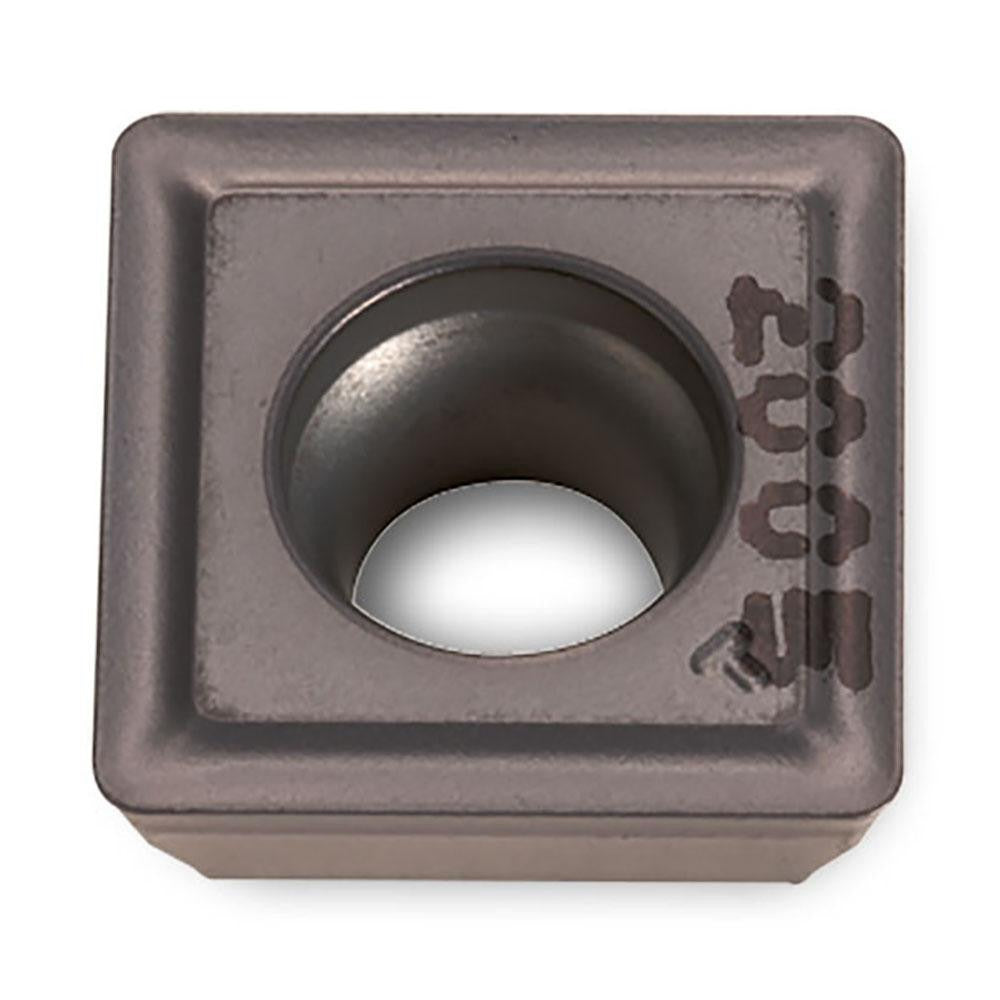

Ingersoll Cutting Tools 5101007 Indexable Drill Insert

Product Description

The INGERSOLL CUTTING TOOLS 5101007 is a carbide indexable drill insert designed for use in indexable drilling systems on CNC and manual machining equipment. Manufactured to the SHLT110408N-PH ANSI and ISO standard, this insert features a TiAlN coating applied via PVD process, delivering enhanced hardness and heat resistance at the cutting edge. The insert carries grade IN2005 and measures 0.435 inches inscribed circle, 0.181 inches thick, with a 0.031-inch corner radius. Its square shape provides four usable cutting edges, reducing tooling cost per hole. It is installed and replaced by machinists and tooling technicians in production and job-shop environments.

This insert is suited for drilling operations in steel, cast iron, stainless steel, super-alloys, titanium, and hard materials, covering workpiece material codes P, M, K, S, and H. The positive rake geometry and PH chipbreaker promote efficient chip evacuation and reduced cutting forces in these demanding materials. Typical applications include through-hole and blind-hole drilling in medium to high-production settings where insert indexability and consistent tool life are required. Compatible drill styles include the 15C and 15S series indexable drill bodies.

Key Features

• Carbide substrate with TiAlN PVD coating for heat and wear resistance
• Four cutting edges per insert with square SHLT geometry
• Positive rake with PH chipbreaker for efficient chip control
• 0.031-inch corner radius reduces edge stress and improves surface finish
• Covers five workpiece material classifications: P, M, K, S, and H
• ANSI and ISO code SHLT110408N-PH for straightforward cross-reference

Compatibility

Designed for use with 15C and 15S series compatible indexable drill bodies. ANSI and ISO designation SHLT110408N-PH. Insert size code 11, series SHLT-N-PH.

Installation Notes

Insert indexing and replacement is performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before accessing the drill body pocket. Use the correct torx or hex key specified by the drill body manufacturer to seat the insert without over-torquing the clamping screw. Inspect the pocket seating surface for chips or damage before installing a fresh insert edge.
