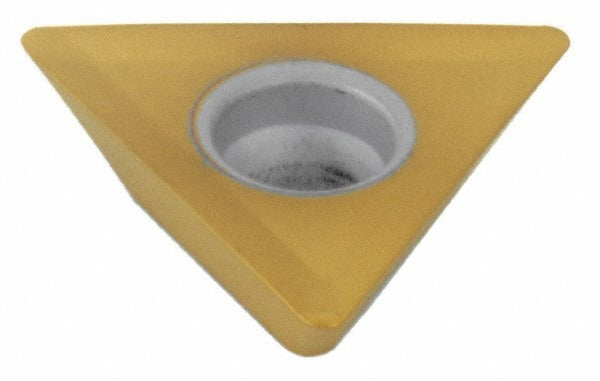

Ingersoll Cutting Tools 5100414 Indexable Drill Insert

Product Description

The INGERSOLL CUTTING TOOLS 5100414 is a carbide indexable drill insert designed for use with FAK-style indexable drills in metal-cutting applications. Manufactured to the TFLT15TF insert style in grade IN2530, it features a PVD-applied TiAlN and TiN dual coating that extends cutting tool life when working steel, stainless steel, super-alloys, and titanium. The triangular 60-degree insert geometry provides three usable cutting edges per insert, improving cost-per-edge efficiency. With a 0.375-inch inscribed circle, 0.156-inch thickness, and a 0.031-inch corner radius, this insert is built to ANSI code TFLP32-01 J and ISO code TFLT15T308N. Installation is handled by tool-and-die technicians and CNC machinists working in production or job-shop environments.

This insert is suited for drilling operations on steel (P), stainless steel (M), super-alloys, and titanium (S) workpiece materials. It is designed specifically for compatibility with FAK-style indexable drill bodies and is appropriate for both high-production CNC turning and machining center applications where repeatable hole quality and insert indexability are required. The positive rake and TF chipbreaker geometry help manage chip flow in these demanding materials.

Key Features

• Grade IN2530 carbide substrate with PVD TiAlN and TiN coating for extended tool life in steel and super-alloy drilling
• Triangle shape with 60-degree included angle and three usable cutting edges per insert
• Positive rake geometry with TF chipbreaker for effective chip control
• 0.031-inch corner radius reduces edge stress and improves surface finish
• Neutral cutting direction suits standard right-hand FAK drill configurations
• Conforms to ANSI code TFLP32-01 J and ISO code TFLT15T308N for cross-reference and replacement sourcing

Compatibility

Designed for use with FAK-style indexable drill bodies. Compatible insert size code is 15, insert size designation 15T308. Verify drill body seat geometry and torx screw specification against the insert pocket before indexing.

Installation Notes

Indexable insert replacement is performed by machinists or tool-room technicians. Power down and lock out the machine spindle before accessing the drill body pocket. Use the correct torx or hex key specified by the drill body manufacturer to seat and clamp the insert - do not substitute fasteners. Inspect the insert pocket for wear or debris before seating a new insert, as a damaged pocket seat will affect runout and hole quality.
