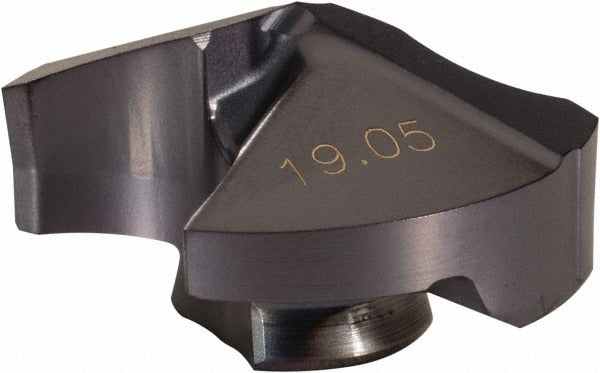

Ingersoll Cutting Tools 5100241 Replaceable Drill Tip

Product Description

The INGERSOLL CUTTING TOOLS 5100241 is a replaceable drill tip engineered for high-performance drilling in steel and other P-class workpiece materials. Built from solid carbide with a TiAlN coating applied via PVD process, this insert delivers thermal resistance and edge retention under demanding cutting conditions. It carries a 140-degree included point angle with a standard point type and helical flute geometry across two flutes. Seat size 19 and YAB-series styling make it a direct match for compatible Ingersoll modular drill bodies. Licensed machinists, tool room technicians, and CNC operators handling production steel drilling are the primary installers of this tip.

This drill tip is suited for spot drilling and through-hole drilling operations in steel workpieces classified under ISO material group P, covering P15 through P30 grades. The YAB series platform is a modular system, and this tip is intended for use in matching YAB-series drill bodies with an insert seat size of 19. Its 0.75-inch cutting diameter makes it a common choice for medium-bore applications on CNC machining centers and production drilling lines where repeatable accuracy and fast tip changes are required.

Key Features

• Solid carbide construction for rigidity and wear resistance in steel cutting
• TiAlN coating via PVD process improves thermal stability and tool life
• 140-degree standard point angle reduces thrust and centers accurately
• Two helical flutes with regular spiral promote chip evacuation
• Clamp-style insert holding method for secure, repeatable seating
• Spot drilling capable, eliminating the need for a separate center drill in some setups

Compatibility

Designed for use with YAB-series modular drill bodies requiring insert seat size 19 and a 0.75-inch cutting diameter. ISO number reference: NXXF75R01 IN2005. Meets ANSI standards. Primary workpiece material compatibility is steel, ISO material code P, grades P15 to P30.

Installation Notes

Replaceable drill tips of this type are installed and replaced by machinists or tool crib technicians following the drill body manufacturer's clamping torque and seating procedures. Always ensure the drill body seat is clean and free of chips before seating the insert. Machine spindle should be fully stopped and locked out before tip removal or installation. Refer to the drill body manufacturer's documentation for correct clamp tightening sequence.
