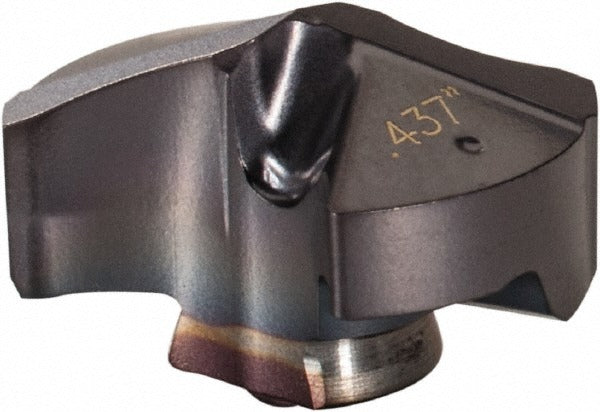

Ingersoll Cutting Tools 5100178 Carbide Replaceable Tip Drill

Product Description

The INGERSOLL CUTTING TOOLS 5100178 is a carbide replaceable tip drill designed for precision hole-making in a wide range of workpiece materials. Built on the YAB series platform, this drill uses an ISO insert tip designated YAB1110R01 in IN2005 grade micro grain solid carbide. The TiAlN and TiN PVD coating improves wear resistance and heat management during cutting. With an 11.1mm cutting diameter and a 140-degree point angle, it delivers accurate entry geometry across universal material classifications including steels, stainless, cast iron, and superalloys. Machinists and toolroom technicians install and maintain this tool as part of a modular drilling system.

This replaceable tip drill is suited for general drilling operations on CNC machining centers and turning centers where consistent hole quality is required. The IN2005 micro grain carbide grade performs across ISO material groups P, M, K, S, and H, making it a versatile choice for shops working multiple material types. The modular design allows tip replacement without removing the drill body from the machine, reducing downtime during production runs. Coolant-through capability is not included in this configuration.

Key Features

• YAB1110R01 replaceable carbide tip in IN2005 micro grain carbide grade
• 11.1mm cutting diameter with a 140-degree included point angle
• TiAlN and TiN PVD dual coating for enhanced wear and heat resistance
• Compatible with ISO material groups P, M, K, S, and H (universal application)
• 2-flute geometry with twist insert holding method
• Insert seat size 11 for proper tip engagement and repeatability

Compatibility

Designed for use with YAB series drill bodies accepting insert seat size 11. Compatible tip ISO number is YAB1110R01 in IN2005 grade. Verify body series and seat size before ordering a replacement tip.

Installation Notes

Replaceable tip drills of this type are installed and serviced by machinists or toolroom technicians on CNC machining centers. Power down and lock out the spindle before removing or seating the carbide tip. Use the manufacturer-specified torque key or wrench for tip seating - do not over-torque by hand. Inspect the insert seat for chips or debris before installing a new tip to ensure accurate runout.
