Ingersoll Cutting Tools 5100155 Replaceable Tip Drill 15.9mm

Product Description

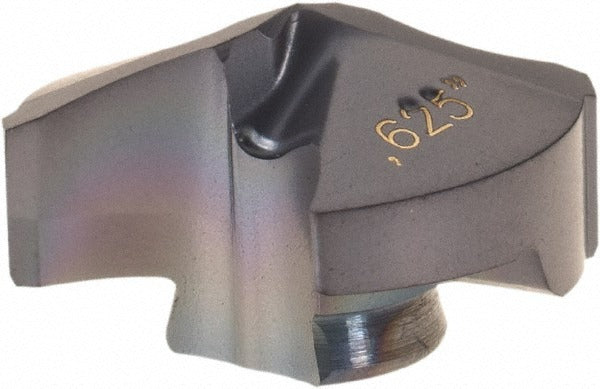

The INGERSOLL CUTTING TOOLS 5100155 is a carbide replaceable tip drill designed for precision hole-making in a wide range of workpiece materials. It features a solid carbide tip in the IN2005 manufacturer grade with a micro grain substrate, providing consistent edge integrity under demanding cutting conditions. The TiAlN and TiN PVD coating reduces heat buildup and extends tool life in production drilling applications. With a 15.9mm cutting diameter and a 140-degree drill point angle, this drill is suited for entering and exiting workpieces cleanly without excessive thrust. It carries the ISO designation YAB1590R01 and belongs to the YAB series replaceable tip drill platform.

This drill is intended for use in machining operations across universal workpiece material categories, covering ISO material groups P, M, K, S, and H. Typical applications include production drilling on CNC machining centers and turning centers where replaceable tip tooling reduces downtime versus brazed or solid rebar drills. The replaceable tip design allows worn or damaged tips to be swapped at the machine without removing the drill body from the spindle, making it a practical choice for high-volume shops and tool crib management programs. No coolant-through capability is present on this configuration.

Key Features

• Solid carbide tip in IN2005 micro grain grade for controlled wear resistance
• TiAlN and TiN PVD coating for thermal protection and extended tool life
• 140-degree drill point angle for reduced thrust and clean entry on universal materials
• 2-flute twist geometry in 15.9mm cutting diameter
• Replaceable tip system with insert seat size 15 for fast tip changes at the machine
• Compatible with ISO material groups P, M, K, S, and H

Compatibility

Designed as an OEM-style replacement tip drill for use with YAB series drill bodies accepting an insert seat size 15. ISO designation YAB1590R01 should be referenced when confirming body-to-tip compatibility.

Installation Notes

Installation and tip replacement should be performed by a qualified machinist or tooling technician. The machine spindle must be fully stopped and the tool de-energized before changing the replaceable tip. Follow the drill body manufacturer torque and seating guidelines when securing the tip to the shank body. Inspect the insert seat for chips or debris before installing a new tip to ensure proper seating and runout performance.
