Ingersoll Cutting Tools 5100123 Replaceable Tip Drill

Product Description

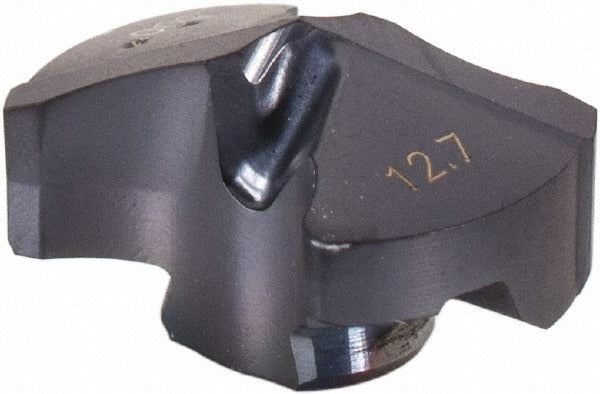

The INGERSOLL CUTTING TOOLS 5100123 is a carbide replaceable tip drill designed for high-performance drilling applications across a wide range of workpiece materials. Built on the YAB series platform with ISO designation YAB1270R01, this drill features a 0.5-inch cutting diameter and a 140-degree point angle for aggressive, centered entry. The replaceable tip design uses a twist-lock insert holding method, allowing worn tips to be swapped without discarding the entire drill body. The TiAlN and TiN PVD coating combination provides thermal resistance and extended tool life. At 0.05 pounds, it is lightweight and suited for precision tooling setups in CNC and manual machining environments.

This drill is rated for universal primary workpiece material compatibility, covering ISO material groups P, M, K, S, and H. That range spans steels, stainless steels, cast irons, superalloys, and hardened materials. The IN2005 manufacturer grade with micro grain carbide construction makes it applicable in production drilling where consistent hole quality and tip longevity are priorities. Typical use cases include component machining in aerospace, general metalworking, and industrial manufacturing where replaceable tip drills reduce per-hole tooling cost compared to solid carbide drills.

Key Features

• 0.5-inch cutting diameter with 140-degree drill point angle for centered, burr-minimized entry
• Solid carbide micro grain tip in IN2005 grade for wear resistance across hard and abrasive materials
• TiAlN and TiN PVD coating for thermal stability and extended cutting life
• Twist-lock replaceable tip system reduces downtime during tip changes
• Two-flute geometry supports efficient chip evacuation
• Compatible with ISO material groups P, M, K, S, and H - universal workpiece coverage

Compatibility

The 5100123 tip is part of the YAB series and carries ISO designation YAB1270R01 with an insert seat size of 12. It is compatible with YAB series drill bodies designed for size 12 replaceable tip inserts. Verify body series and seat size before ordering to confirm fitment.

Installation Notes

Installation is performed by machinists or tooling technicians on CNC machining centers or manual drill presses. Ensure the drill body is fully de-energized and spindle is locked before seating or removing the replaceable tip. Use the manufacturer-specified torx or clamping key to secure the tip to the recommended engagement - do not over-torque by feel alone. Inspect the insert seat for debris or damage before installing a new tip to maintain runout accuracy.
