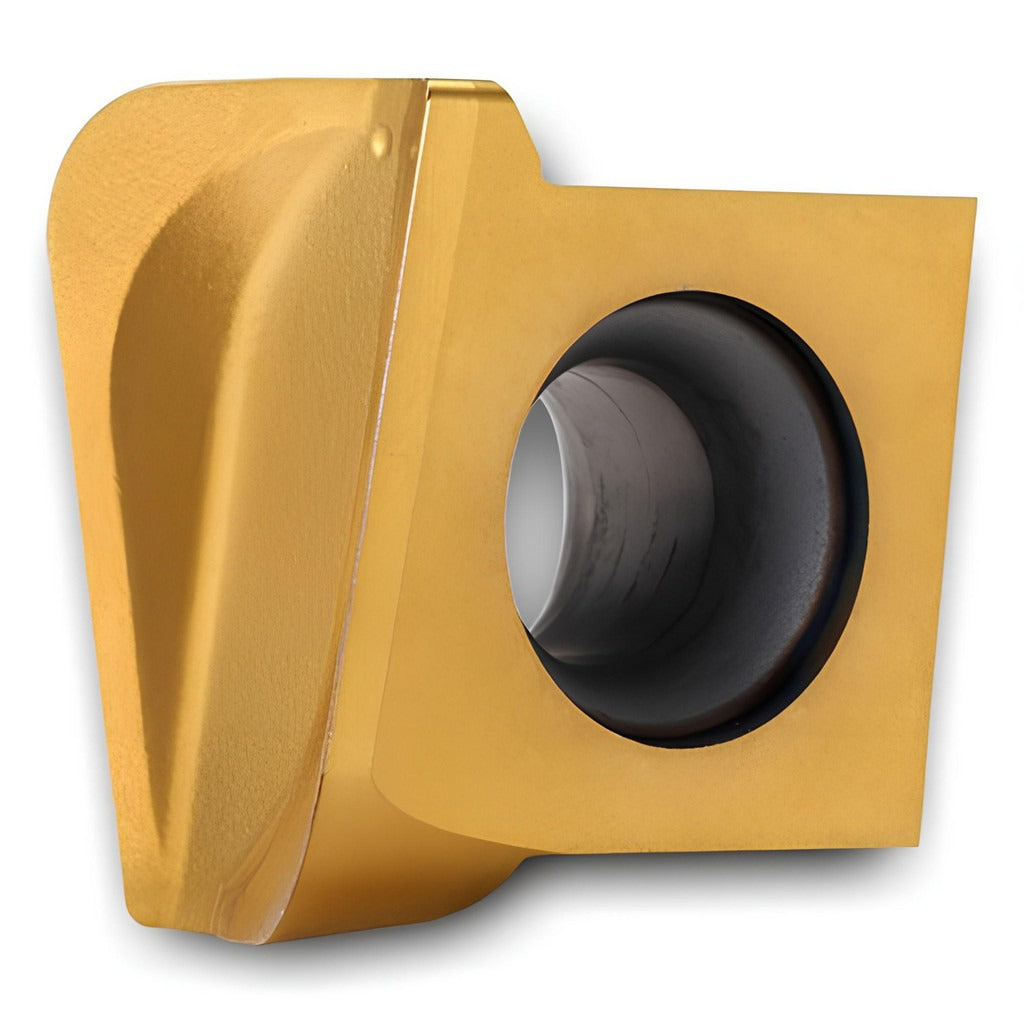

Ingersoll Cutting Tools 2923909 Milling Insert IN2530

Product Description

The INGERSOLL CUTTING TOOLS 2923909 is a solid carbide milling insert designed for high-performance metal cutting in demanding machining applications. Carrying the ANSI and ISO designation IPM426R009-MM A IN2530, this insert features a TiAlN and TiN PVD coating applied over a coarse-grain solid carbide substrate. It is part of the IPM series and uses an irregular insert shape with a right-hand cutting orientation. The insert delivers a 16.0 mm maximum depth of cut with a positive rake angle of 11 degrees and a corner radius of 0.2500 inches. It is installed by machinists and tool-and-die technicians in CNC milling operations.

This insert is intended for milling steel, stainless steel, superalloys, and titanium, covering primary workpiece material codes P, M, and S. It fits within typical production and job-shop environments where controlled chip evacuation and edge integrity are critical. The MM chip breaker geometry supports consistent chip control across these material groups. The insert is held in place via a screw-clamping method and is compatible with the 2XJ3J cutter series. It is suited for both roughing and semi-finishing passes where corner rounding and positive geometry reduce cutting forces.

Key Features

• Solid carbide substrate with coarse-grain material grade for toughness in interrupted cuts
• TiAlN and TiN dual PVD coating for heat resistance and extended tool life in steel and superalloy machining
• Positive rake angle of 11 degrees reduces cutting forces and spindle load
• Corner radius of 0.2500 inches (1/4 inch) minimizes edge chipping and improves surface finish
• MM chip breaker geometry designed for steel, stainless steel, superalloys, and titanium
• Right-hand, single-sided insert with 2 cutting edges for indexing efficiency

Compatibility

Compatible with the 2XJ3J cutter series. ANSI and ISO code IPM426R009-MM A IN2530. Designed as a screw-clamped replacement insert for IPM-series milling toolholders requiring an IPM426 size insert.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician with the spindle fully stopped and the machine in a locked-out, tagged-out state per applicable safety procedures. Use the appropriate Torx or hex key to seat the clamping screw to the toolholder manufacturer's specified torque - do not over-torque, as this can fracture the carbide insert. Inspect the insert pocket and seating surface for chips or debris before indexing to a fresh cutting edge. Verify correct insert orientation for right-hand cutting before resuming operation.
