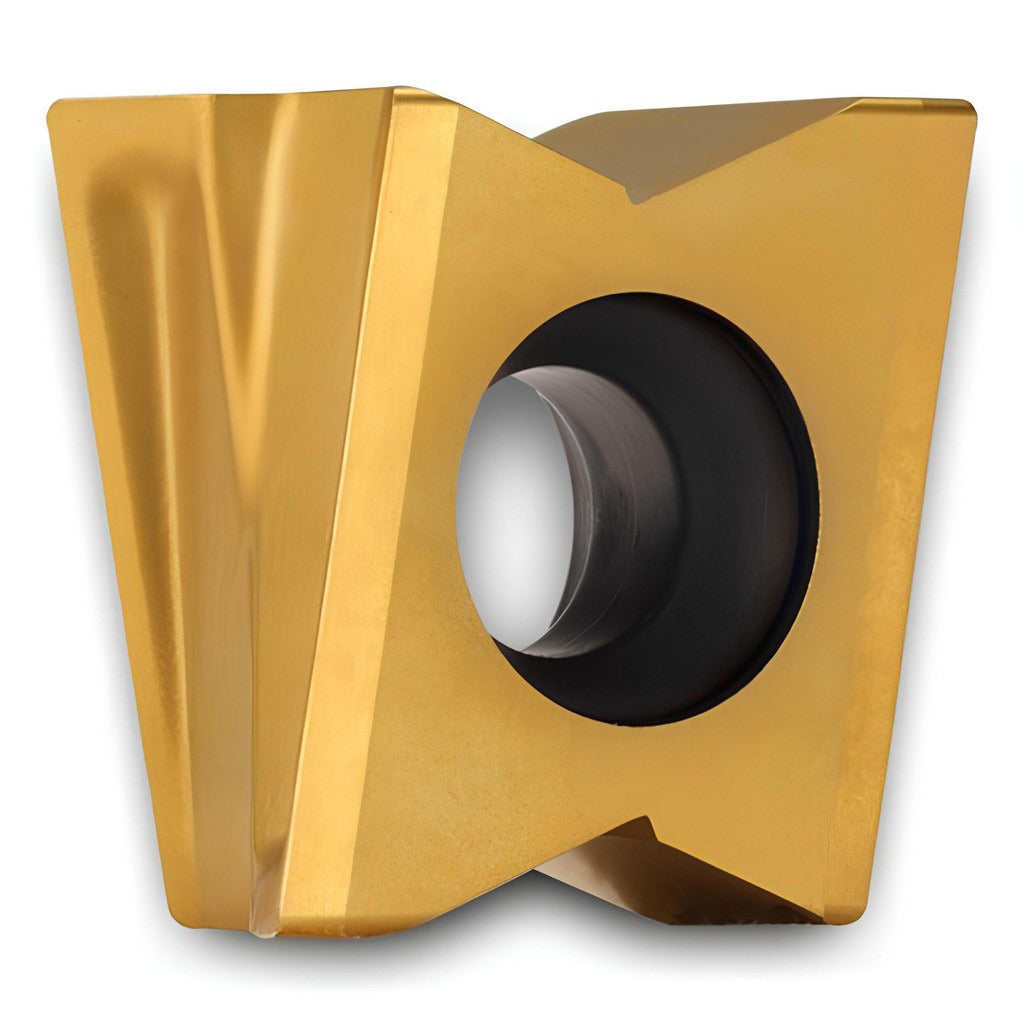

Ingersoll Cutting Tools 2922930 Milling Insert IN2530

Product Description

The INGERSOLL CUTTING TOOLS 2922930 is a solid carbide milling insert with an IPM insert style, ANSI/ISO designation IPM324R001-MM A IN2530, and manufacturer grade IN2530. It carries a dual PVD coating - TiAlN over TiN - applied to a coarse-grain solid carbide substrate. The insert measures 0.5120 inches wide and 0.2810 inches thick, with a 0.0150-inch corner radius and a 90-degree included angle. With four cutting edges, a positive rake geometry, and an 11-degree rake and relief angle, it is designed for productive milling in demanding materials. Licensed machinists and CNC tool technicians are the primary installers.

This insert is suited for milling steel, stainless steel, superalloys, and titanium - material application codes P, M, and S. The MM chip breaker geometry and honed cutting edge style help control chip formation across these challenging workpiece materials. It is a right-hand insert held by screw clamping, and it belongs to the IPM series within the 2XJ3J cutter series compatibility group. Maximum depth of cut is 13.00 mm. Typical applications include face milling, shoulder milling, and pocketing operations on CNC machining centers in job-shop and production environments.

Key Features

• Solid carbide coarse-grain substrate with dual PVD TiAlN and TiN coating for heat and wear resistance
• Four cutting edges on a single-sided insert, maximizing tool economy
• Positive rake angle of 11 degrees with honed cutting edge for reduced cutting forces
• MM chip breaker designed for steel, stainless steel, superalloys, and titanium
• Right-hand, screw-held mount compatible with the 2XJ3J cutter series
• Conforms to ANSI and ISO standards with verified ANSI code IPM324R001-MM A IN2530

Compatibility

Designed for use with the 2XJ3J cutter series. Conforms to ANSI and ISO insert standards under designation IPM324R001-MM A IN2530. Verify cutter body seat geometry and screw specification before installation.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torx or hex key to the cutter body manufacturer's specified fastener procedure - do not overtighten the clamping screw, as this can fracture the insert or damage the seat. Inspect the pocket seat for chips or debris before seating the new insert.
