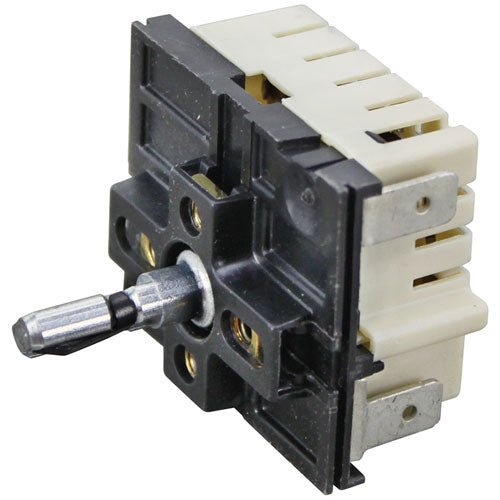

INFINITE SWITCH 240V 15 AMP 2E-34593 for Star Mfg STA2E-34593

Product Description

This item for Star Mfg with MPN 2E-34593 is an infinite switch designed for various applications. It operates at two hundred forty volts and is rated for fifteen amps. This switch features a B cam and has a horizontal two-screw mount allowing for secure installation. The flat-up position enables user-friendly access.

• Operates at 240V with a 15 AMP rating
• Horizontal two-screw mount for secure installation
• Compatible with multiple Wells hot plate models

Product Highlights

Product Information

Standard Information

• Product Name: Infinite Switch
• Voltage: 240V

Technical Specifications

• Current Rating: 15 AMP
• Mounting Configuration: Horizontal two-screw mount
• Shaft Size: .187 x 7/8 inches
• Operating Position: Flat up
• Compatibility: Wells model B-40, B-406, B-44, B-446, B-50, B-506, SS-206 and variations
• Knob Type: Grey & silver T'stat knob wells
• Low Setting: Approximately 22-1/2%
• Alternate Part Number: #22-1073
