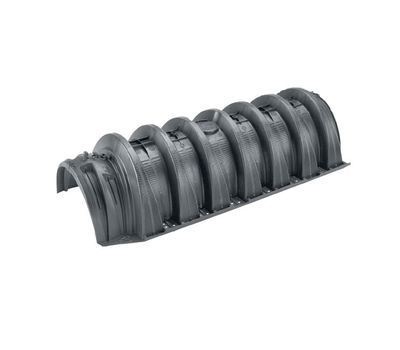

Infiltrator Q4EQ36 Quick4 Equal 36 Chamber

Product Description

The INFILTRATOR Q4EQ36 Quick4 Equal 36 Chamber fits in a 24" wide trench and is ideal for curved or straight systems. It features a latching mechanism for quick installation. The chamber supports wheel loads of 16,000 lbs per axle with only 12 in of cover. Compact nesting provides more trench length.

• Latching mechanism allows for quick installation
• 4-foot chambers are easy to handle
• Supports wheel loads of 16,000 lbs. per axle with only 12 in. of cover

Product Highlights

The Quick4 Equalizer 36 Chamber is designed for efficient septic systems, offering easy installation and robust support.

Product Information

Standard Information

• Brand: INFILTRATOR
• Manufacturer Part Number: Q4EQ36
• Country of Origin: USA

Technical Specifications

• Catalog Number: Q4EQ36
• MPN: Q4EQ36
• Brand: INFILTRATOR
• Mfg Standards/Approvals: ASTM F441, NSF Approved, ULC-102.2
• Overall Height: 12 in
• Overall Length: 53 in
• Overall Width: 22 in
• Size: 53 Inch Length x 22 Inch Width x 12 Inch Height
• Used On Item: 24 Inch Width Trench
• Storage Capacity: 32 Gallon
• Effective Length: 48 in
• Capacity: 32 gal
• Height: 12 in
• Load Rating: 16000 lb
• Series: QUICK4® Equalizer 36
• Width: 22 in
• Dimensions: 22'' x 53'' x 12''
• Designed to work in a: 24'' wide trench
• Overall effective length: 4 feet
