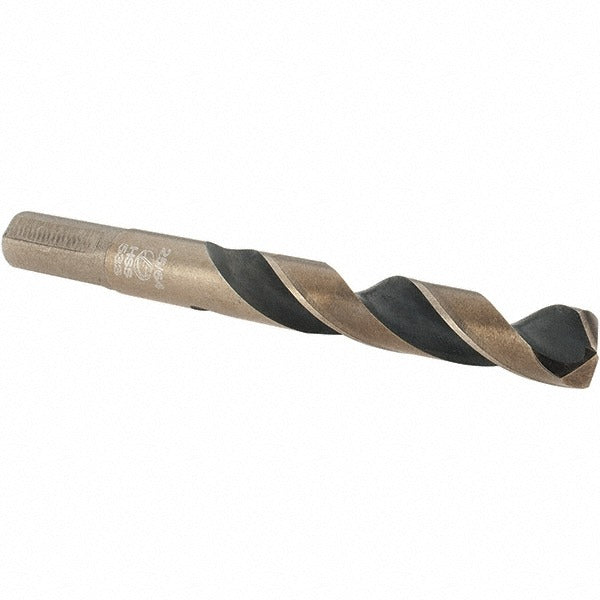

Import BDNA-20941 Reduced Shank Drill Bit 25/64 in Hss

Product Description

The IMPORT BDNA-20941 is a reduced shank drill bit designed for drilling operations where a standard shank diameter would exceed the chuck capacity of the tool being used. Manufactured from high speed steel (HSS), this bit measures 25/64 inch (0.3906 inch decimal) in cutting diameter with a 3/8 inch Weldon shank diameter, an overall length of 4-5/16 inches, and a flute length of 2-3/4 inches. The 135-degree split point angle reduces walking at startup and decreases the thrust required to feed the bit. A coated finish provides added surface hardness and wear resistance during general-purpose drilling applications.

This bit is suited for general-purpose drilling in metal fabrication, mechanical maintenance, and industrial production environments. The Weldon shank with three flats provides positive drive and prevents slipping in milling-style chucks and holders. Right-hand spiral flutes evacuate chips efficiently during through-hole and blind-hole drilling. It is appropriate for use in drill presses, milling machines, and CNC equipment equipped with compatible Weldon-style tool holders. This bit is part of the T8M series and is intended for right-hand cutting operations only.

Key Features

• 25/64 inch cutting diameter (0.3906 inch decimal) with a reduced 3/8 inch Weldon shank for use in smaller chucks
• 135-degree split point reduces bit walking and lowers feed pressure at drill entry
• High speed steel construction provides durability across a range of general-purpose drilling tasks
• Three-flat Weldon shank prevents rotational slipping in compatible tool holders
• Right-hand spiral flutes with regular spiral type for efficient chip evacuation
• Coated finish for increased surface wear resistance

Compatibility

Designed as a general-purpose reduced shank drill bit compatible with Weldon-style tool holders and chucks accepting a 3/8 inch shank diameter, including drill presses, milling machines, and CNC spindles equipped for Weldon drive.

Installation Notes

Install and removal should be performed by a qualified machinist or maintenance technician. Ensure the machine spindle is fully powered down and locked out before inserting or removing the bit from the tool holder. Verify that the set screw in the Weldon holder is fully engaged against one of the three shank flats before operating. Do not use this bit in a standard three-jaw drill chuck without confirming the chuck can securely grip a Weldon shank profile.
