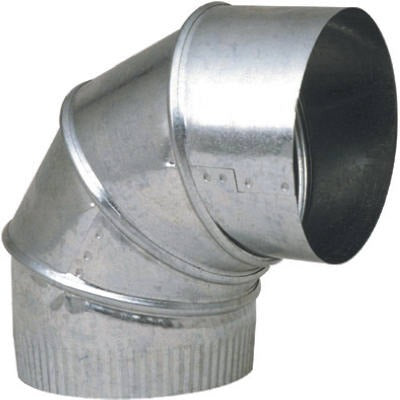

Imperial GV0294-C 6 in Adjustable 26GA Furnace Elbow 90 Degree

Product Description

The IMPERIAL MFG GROUP USA INC GV0294-C is a 6-inch adjustable 90-degree galvanized steel furnace elbow designed for HVAC duct and vent connector applications. Fabricated from 26-gauge galvanized steel, this elbow provides a rigid, corrosion-resistant connection point where duct runs require a right-angle turn. The adjustable design allows the installer to set the fitting angle within the 90-degree range, reducing the need to stock multiple fixed-angle fittings. This component is commonly installed by HVAC technicians and sheet metal mechanics during new construction and system retrofit work.

This elbow is used in residential and light-commercial forced-air furnace duct systems wherever a 6-inch round duct requires a 90-degree direction change. It is suited for supply or return trunk branch takeoffs, furnace plenum connections, and inline duct routing in tight mechanical spaces. The galvanized finish makes it appropriate for both conditioned and unconditioned space installations where moisture exposure is a routine concern. This package contains 8 elbows per unit of measure.

Key Features

• Adjustable 90-degree elbow allows field-set angle for flexible installation
• 26-gauge galvanized steel construction for durability and corrosion resistance
• 6-inch diameter fits standard round duct and furnace collars
• Sold in a package of 8 units, suitable for multi-unit job stocking
• Galvanized finish suitable for conditioned and unconditioned space use

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 6-inch round duct systems in residential and light-commercial forced-air HVAC applications.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal mechanics. Shut down and lock out the HVAC system before making any duct modifications. Secure all duct connections with sheet metal screws and seal joints with UL 181-listed foil tape or mastic per local mechanical code requirements. Do not use this fitting on systems operating outside standard residential forced-air pressure ratings.
