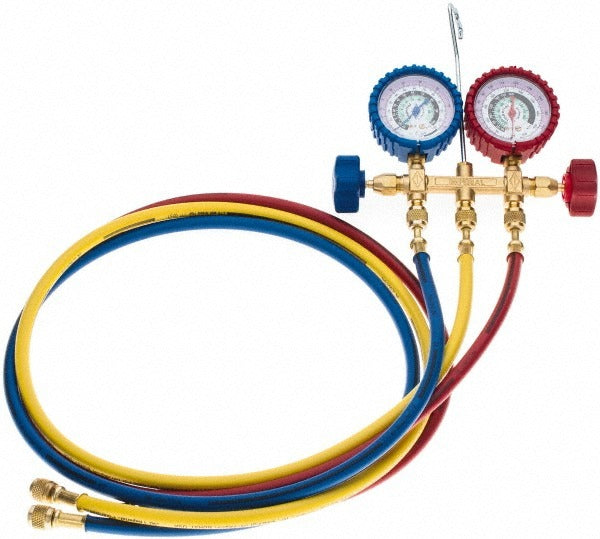

Imperial 500-C 2-valve Manifold Gauge Set

Product Description

The IMPERIAL 500-C is a 2-valve refrigerant manifold gauge set designed for HVAC/R service work. It allows technicians to read system pressures on both the high and low sides of a refrigerant circuit simultaneously, and to connect service hoses for charging, recovery, or evacuation. The set includes hoses sized at 3/5 inch and is rated for a maximum working pressure of 800 psi, with a burst pressure rating of 4,000 psi. At 3.2 pounds, the set is field-portable and suited for daily service use by licensed HVAC technicians.

This manifold gauge set is appropriate for residential and light commercial refrigeration and air conditioning service. It is used during system commissioning, leak diagnosis, refrigerant charging, and system evacuation procedures. The dual-valve design gives the technician independent control over the high-side and low-side circuits without disconnecting hoses between tasks.

Key Features

• Maximum working pressure of 800 psi for compatibility with common refrigerant service applications
• Burst pressure rated to 4,000 psi for a substantial safety margin above working pressure
• 2-valve configuration provides independent high-side and low-side control
• Includes 3/5 inch service hoses for direct connection to system ports
• Lightweight at 3.2 pounds for portable field use

Compatibility

Designed as an OEM-style replacement and general-use manifold gauge set for residential and light commercial HVAC/R service on systems within the 800 psi maximum working pressure rating.

Installation Notes

This manifold gauge set is installed and operated by licensed HVAC/R technicians in accordance with EPA Section 608 refrigerant handling regulations. Before connecting to any system, shut off power to the unit and confirm the refrigerant type and system pressure range are within the gauge set's rated limits. Do not exceed the 800 psi maximum working pressure rating. Hose connections should be hand-tightened and checked for leaks before opening either manifold valve.
