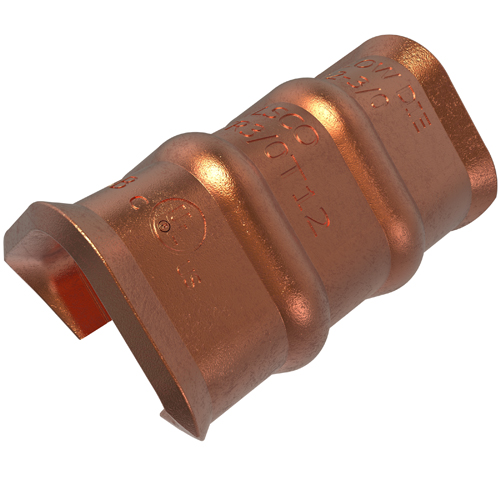

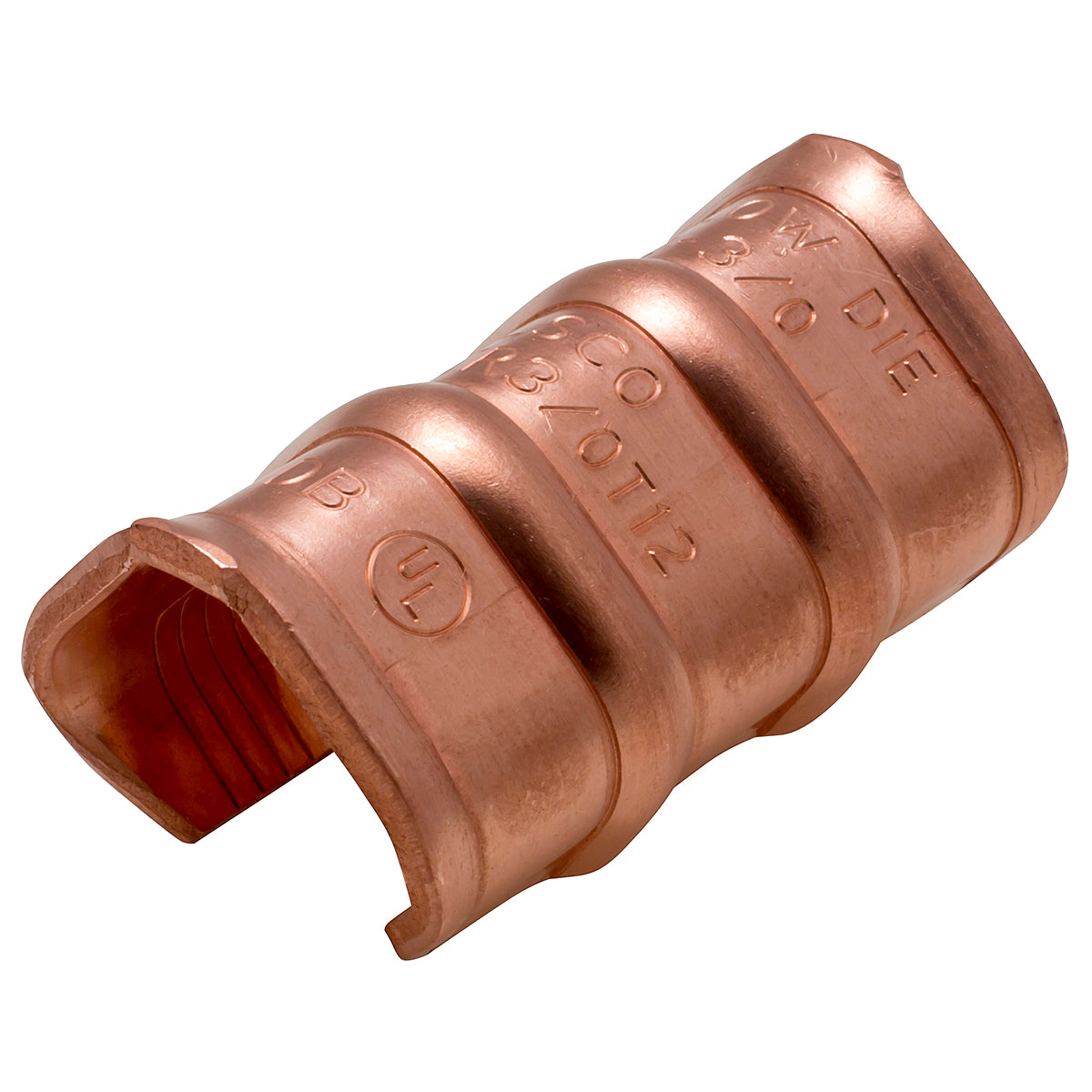

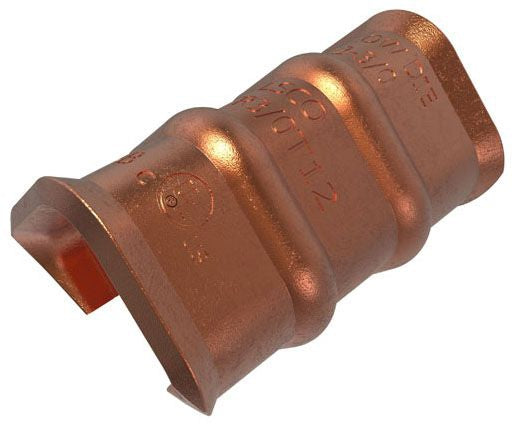

Ilsco TWCTR3/0T12 Permaground Copper Thin Wall C-Tap, Main Conductor Range 3/0-1/0, Tap Range 1/0-12, Yellow Color Code, UL

Product Description

The Ilsco TWCTR3/0T12 is a Permaground Copper Thin Wall C-Tap designed for efficient electrical connections. This connector features a main conductor range of three/0 to one/0 and a tap conductor range of one/0 to twelve. It complies with UL standards and has a bright dip finish for enhanced conductivity.

• Rated for 35 kV for reliable performance
• Easy installation with a yellow color coding for identification
• Direct burial capable for versatile applications

Product Highlights

This tap connector is ideal for use in various electrical applications, ensuring a secure and efficient connection.

Product Information

Standard Information

• Catalog Number: TWCTR3/0T12
• Brand: Ilsco

Technical Specifications

• Body Material: Copper
• Voltage Rating: 35 Kilovolt
• Conductor Size: Main 3/0 AWG, Tap 1/0 AWG
• Color Coding: Yellow
• Die Index: 16
• Size: Length 1.75 inches, Width 0.886 inches, Height 1.12 inches
• Weight: 0.104 lbs
• Direct Burial: Yes
