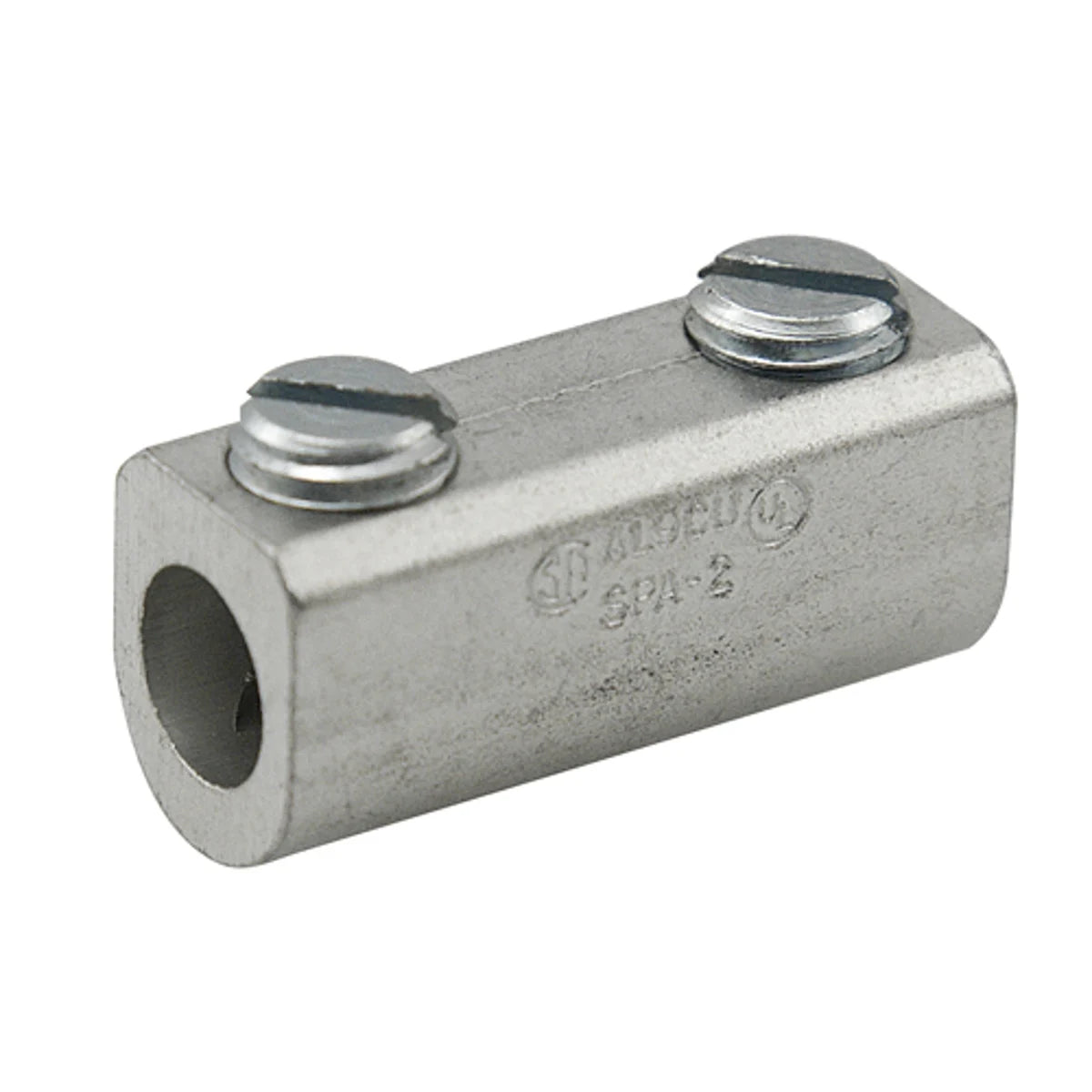

ILSCO SPA-2 Aluminum Splicer/Reducer Dual Rated Conductor Range 14-2

Product Description

The ILSCO SPA-2 is an aluminum splicer and reducer designed for dual rating, accommodating conductor sizes from fourteen to two AWG. This product is constructed from high-strength aluminum alloy, electro-tin plated for improved conductivity and corrosion resistance. Ideal for both copper and aluminum conductors, it provides a reliable solution for electrical connections in various applications.

• Dual rated for use with copper and aluminum conductors
• Electro-tin plated for low contact resistance
• Two screw design for secure connections

Product Highlights

This splicer/reducer is suitable for general electrical tasks, ensuring safe and effective connections in residential and commercial settings.

Product Information

Standard Information

• Manufacturer: ILSCO
• Catalog Number: SPA-2

Technical Specifications

• Material: Aluminum
• Approval: UL 453G, UL 486A/B, CSA Certified
• Conductor Size: 14 to 2 AWG
• Body Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Insulation Type: Non-Insulated
• Number of Screws: 2
• Screw Size: 3/8 Inch Diameter
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 Deg C
• Dimensions: 1.19 inches Length x 0.45 inches Width x 0.55 inches Height
