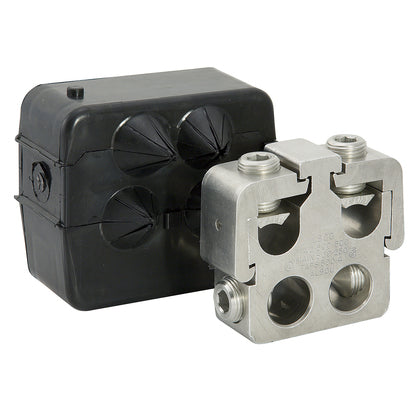

Ilsco pta2-750-500-w/c tap & cover

Product Description

The Ilsco PTA2-750-500-W/C is a tap and cover. This aluminum multi-tap connector is dual rated and accommodates a main conductor range of 750-350 and a tap range of 500-4. It features 2 main ports and 2 tap ports and is tin plated, UL and CSA certified, and includes a cover.

• Rated for copper or aluminum conductors
• Re-usable to provide efficient use and flexibility in the field
• Lay-in main conductor eliminates need to break the feeder cable

Product Highlights

The Ilsco PTA2-750-500-W/C tap and cover is ideal for multiple tap connector applications.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: PTA2-750-500-W/C

Technical Specifications

• Applications: Multiple Tap Connector
• Material: Aluminum
• Number of Conductors: 4
• Number of Ports: 2
• TC Connection: Mechanical
• Temperature Rating: 90 degrees C
• Type: PTA:MULTI TAP AL/CU
• Voltage: 600 Volt
• Brand: Ilsco
• Sub Brand: ILSCO
• Finish: Tin Plated
• MPN: PTA2-750-500-W/C
