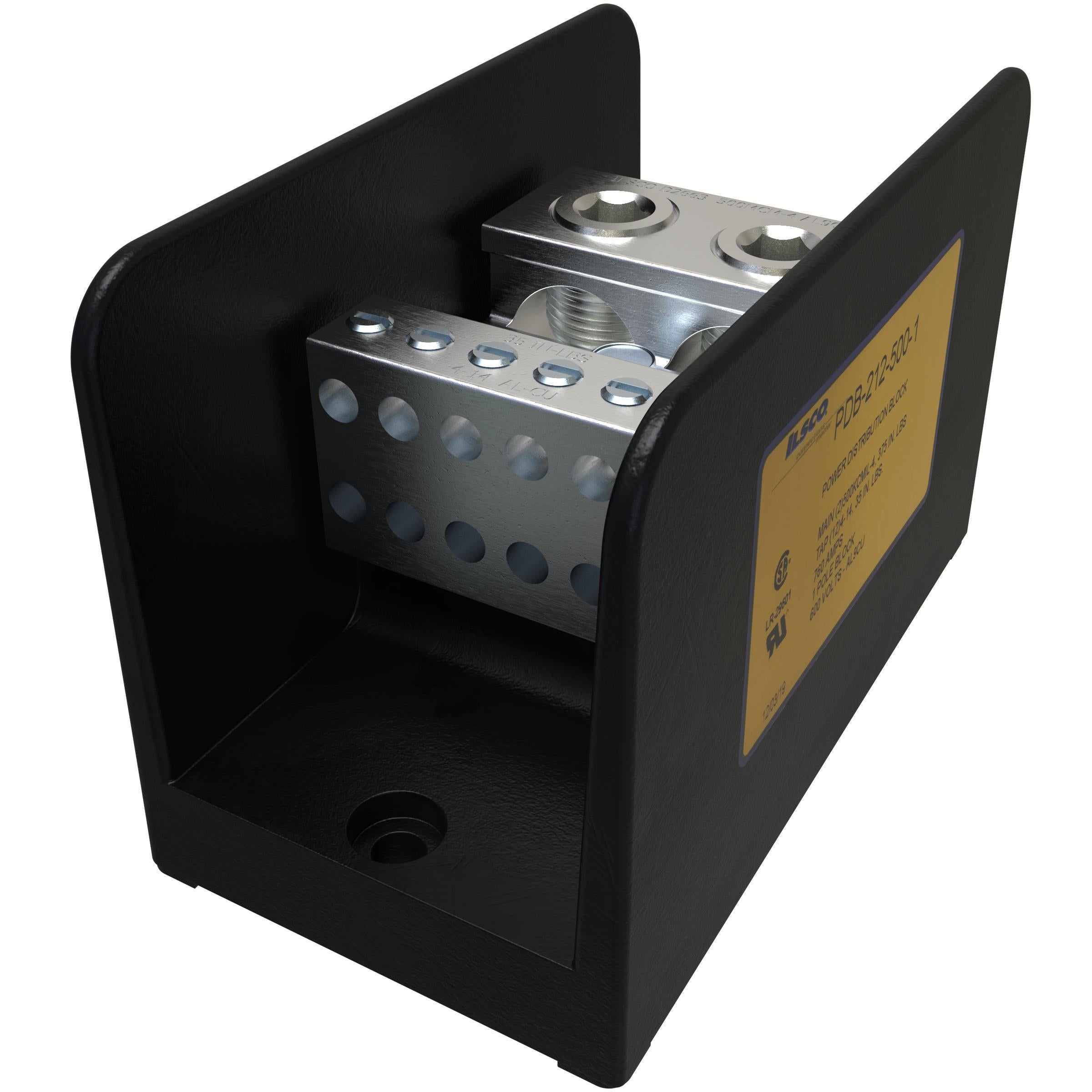

Ilsco PDB-212-500-1 Power Distribution Block Dual Rated Line Conductor Range 500-4

Product Description

The ILSCO PDB-212-500-1 power distribution block is dual rated with a line conductor range of 500-4 and a load range of 4-14. It features 2 ports per pole line side and 12 ports per pole load side, with 1 pole. UL and CSA certified, this power distribution block is suitable for power distribution applications.

• Dual Rated
• Line Conductor Range 500-4
• Load Range 4-14

Product Highlights

This power distribution block offers multiple ports per pole and is suitable for a range of conductor sizes.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: PDB-212-500-1

Technical Specifications

• Type: PDB:PWR DIST BLK AL/CU
• Brand: Ilsco
• Color: Black
• Finish: Tin Plated
• Voltage: 600 Volt
• Amperage: CU:760 AMP
• Material: Aluminum
• Enclosure: Valox
• Sub Brand: ILSCO
• Applications: Power Distribution Block
• TC Connection: Mechanical
• Number of Poles: 1 Pole
• Temperature Rating: 90 degrees C
• Number of Conductors: 14
• Catalog Number: PDB-212-500-1
• Manufacturer: ECM Industries
• MPN: PDB-212-500-1
• Product Series: PDB
• Family Series: Ilsco Power Distribution Blocks, PDB Series
• Description: AL MEC (P)(2)500-4 (S)(12)4-14 T UR CSA
• AC Voltage: 600 VAC
• Current Rating: 760 A
• Number of Inputs per Pole: 2
• Number of Outputs per Pole: 12
• Electrical Connection: Box Lug/Box Lug
• Mounting: Panel Mount
• Line Side Wire Range: 500 kcmil-4 AWG
• Output Wire Range: 4-14 AWG
• Cover Included: No
• Composition: Thermoplastic
• Approvals: CSA, UL
• Short Circuit Current Rating (kA): 10
• Wire Size: 4 AWG to 500 kcmil, 14 to 4 AWG
• Short Circuit Current Rating: 10 kA
• Voltage Rating: 600 VAC
• Primary Connections/Pole: 2
• Secondary Connection/Pole: 12
