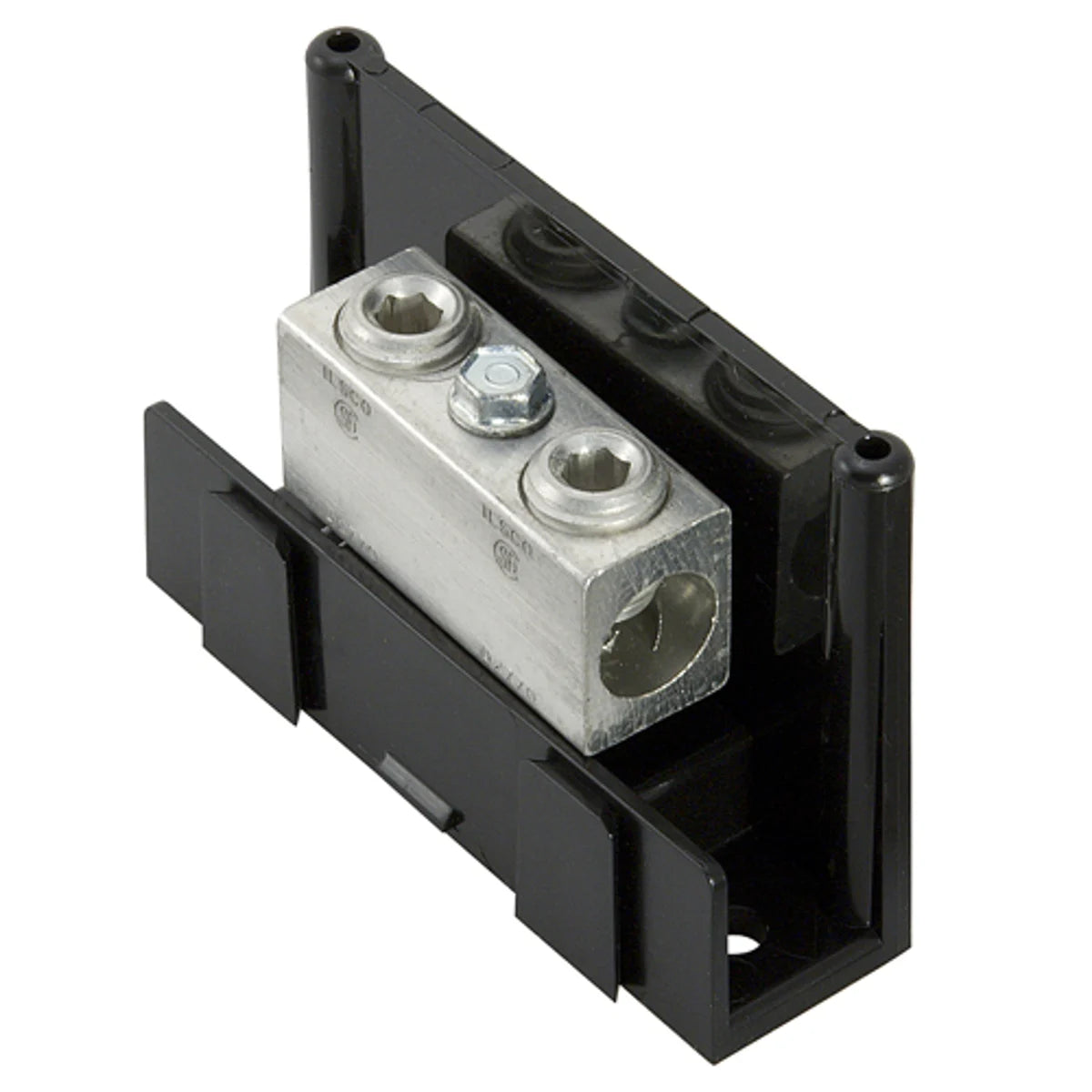

ILSCO PDA-11-2/0-1 Power Distribution Block, Modular Design, Dual Rated, Line Conductor Range 2/0-14, Load Range 2/0-14

Product Description

The ILSCO PDA-11-2/0-1 is a modular power distribution block designed for various electrical applications. This block allows for easy configuration with dual-rated capabilities suitable for conductors ranging from two-aught to fourteen AWG. Its unique modular design simplifies the stocking process and provides flexibility in assembling multiple blocks as needed.

• Modular design facilitates configuration for specific electrical needs.
• UL and CSA approved, ensuring compliance and safety.
• Manufactured from high strength aluminum alloy.

Product Highlights

This power distribution block is designed for reliability and ease of use in professional settings. It supports multiple conductor ranges in one setup and each block can be quickly assembled without special tools.

Product Information

Standard Information

• Brand: ILSCO
• MPN: PDA-11-2/0-1

Technical Specifications

• Approval: UL 1059, CSA
• Conductor Material: Aluminum/Copper
• Connector Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Primary Opening Wire Size: 14 to 2/0 AWG
• Secondary Opening Wire Size: 14 to 2/0 AWG
• Temperature Rating: 90 Deg C
• Voltage Rating: 600 VAC
• Amperage Rating: 175 A
• Short Circuit Current Rating (SCCR): 10 kA
• Size: 2.88 inches x 1.94 inches
