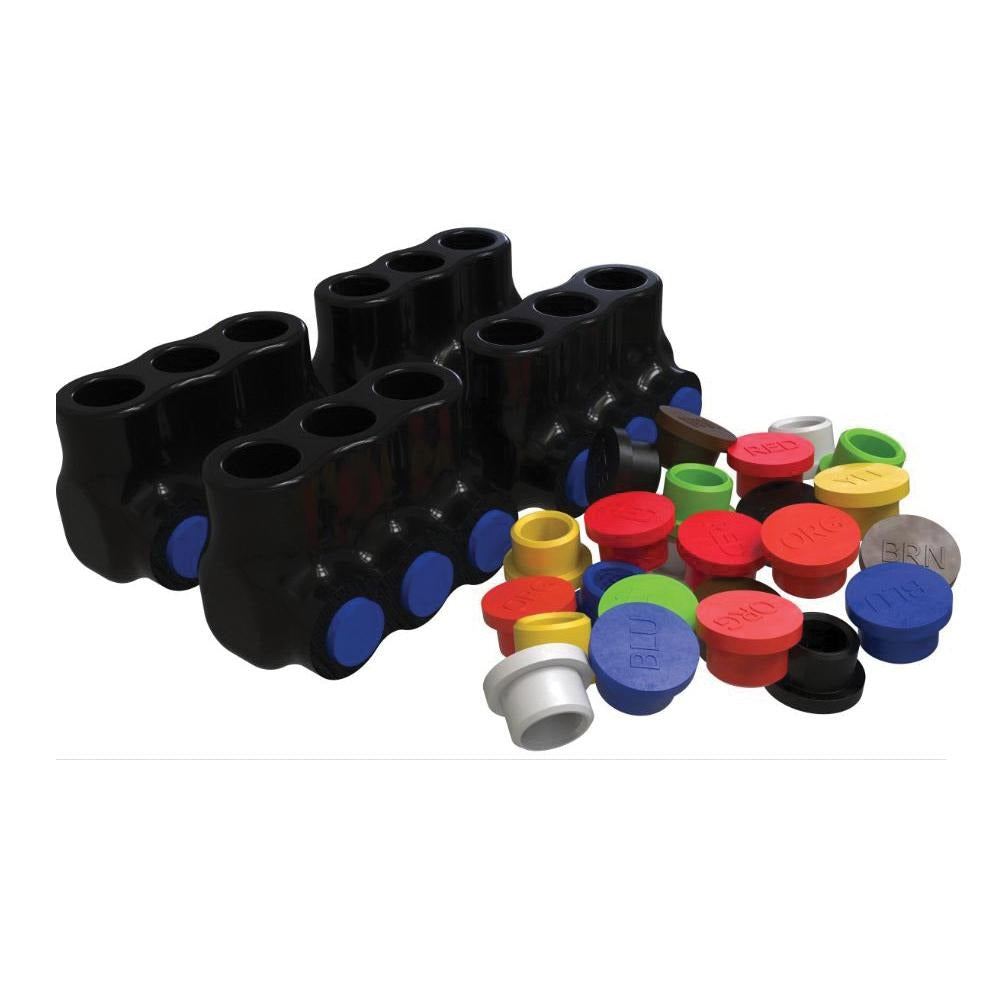

Ilsco pbtfml-4-09-w-l Multi-tap Connector 14-4 Awg 600V

Product Description

The ILSCO pbtfml-4-09-w-l is an insulated multi-tap connector rated for 600 volts and designed for use with flexible, solid, and stranded conductors ranging from 14 to 4 AWG. The body is aluminum with a tin-plated finish, encased in black Plastisol insulation for durable dielectric protection. It carries a temperature rating of 90 degrees C and a torque rating of 120 in-lb, making it suitable for high-integrity tap connections in commercial and industrial wiring applications. Licensed electricians install this connector in panel feeders, branch circuit tapping, and service entrance work where a secure, insulated tap point is required without interrupting the main conductor run.

This multi-tap connector is used in commercial and industrial electrical installations where multiple branch conductors must be tapped from a single run. Its Plastisol insulation eliminates the need for additional tape or heat-shrink over the connection point, streamlining installation in tight enclosures, junction boxes, and wireways. The NEMA S-588-4 enclosure rating confirms it meets established industry standards for insulated connector performance. It is well suited for use in new construction, retrofit panel work, and industrial control wiring where conductor sizes vary across the 14 to 4 AWG range.

Key Features

• 600-volt rating supports commercial and light industrial branch circuit applications
• Accepts flexible, solid, and stranded conductors from 14 to 4 AWG
• Aluminum body with tin-plated finish resists corrosion at the contact interface
• Black Plastisol insulation provides integral dielectric coverage with no additional wrapping required
• 90 degrees C temperature rating suitable for use with THHN and similar high-temp conductors
• NEMA S-588-4 rated, meeting recognized industry performance standards for insulated connectors

Compatibility

Designed for use with flexible, solid, and stranded copper conductors in the 14 to 4 AWG range in 600-volt electrical distribution and branch circuit applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before making or removing any tap connections. Torque set screws to the specified 120 in-lb rating using a calibrated torque driver or wrench to ensure a secure, code-compliant connection. Verify conductor insulation rating and temperature compatibility before terminating.
