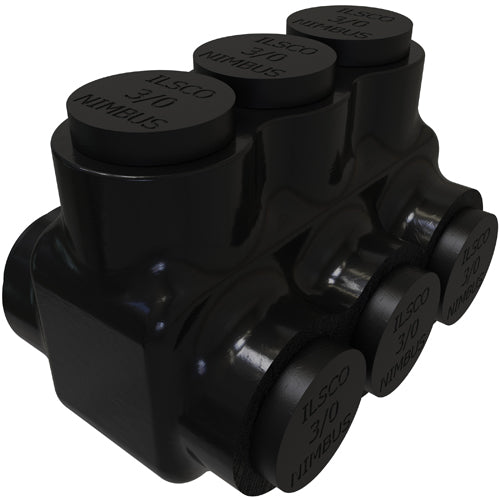

Ilsco pbtd-3-3/0-sr nimbus insulated aluminum multi-tap connector 3 ports

Product Description

The ILSCO PBTD-3-3/0-SR Nimbus is a three-port, dual-sided-entry insulated multi-tap connector for the 3/0–6 AWG conductor range. It is the black-cover Nimbus counterpart for in-line splicing at the mid-size commercial feeder level. Ideal for in-line feeder splices, commercial panels, sub-panel work, service entrances and distribution cabinets.

• 3 ports, dual-sided entry; 3/0–6 AWG dual-rated (copper/aluminum)
• UL 486A/486B Listed, CSA Certified, 600V, 90°C; cold-rated to -45°C
• NEC 2020 §230.46 listed for splicing service-entrance conductors

Product Highlights

The ILSCO Nimbus multi-tap connector features a UV-rated black plastisol cover, is pre-filled with DE-OX® inhibitor and has a 6061-T6 tin-plated aluminum body.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: PBTD-3-3/0-SR

Technical Specifications

• UPC: 78366902370
• Brand: ILSCO
• Pack Size: 1/ea
• UOM: ea
• Description: INSUL AL MECH (3) 3/0-6 DUAL T UL CSA SR
• UNSPSC: 39121408
• Manufacturer Catalog Number: PBTD-3-3/0-SR
• Product Name: ILSCO Nimbus Insulated Aluminum Multi-Tap Connector Conductor Range 3/0-6 3 Ports Dual Sided Entry Tin Plated UL CSA SR (PBTD-3-3/0-SR)
• SKU: PBTD-3-3/0-SR
• Mfr. Part Number: PBTD-3-3/0-SR
