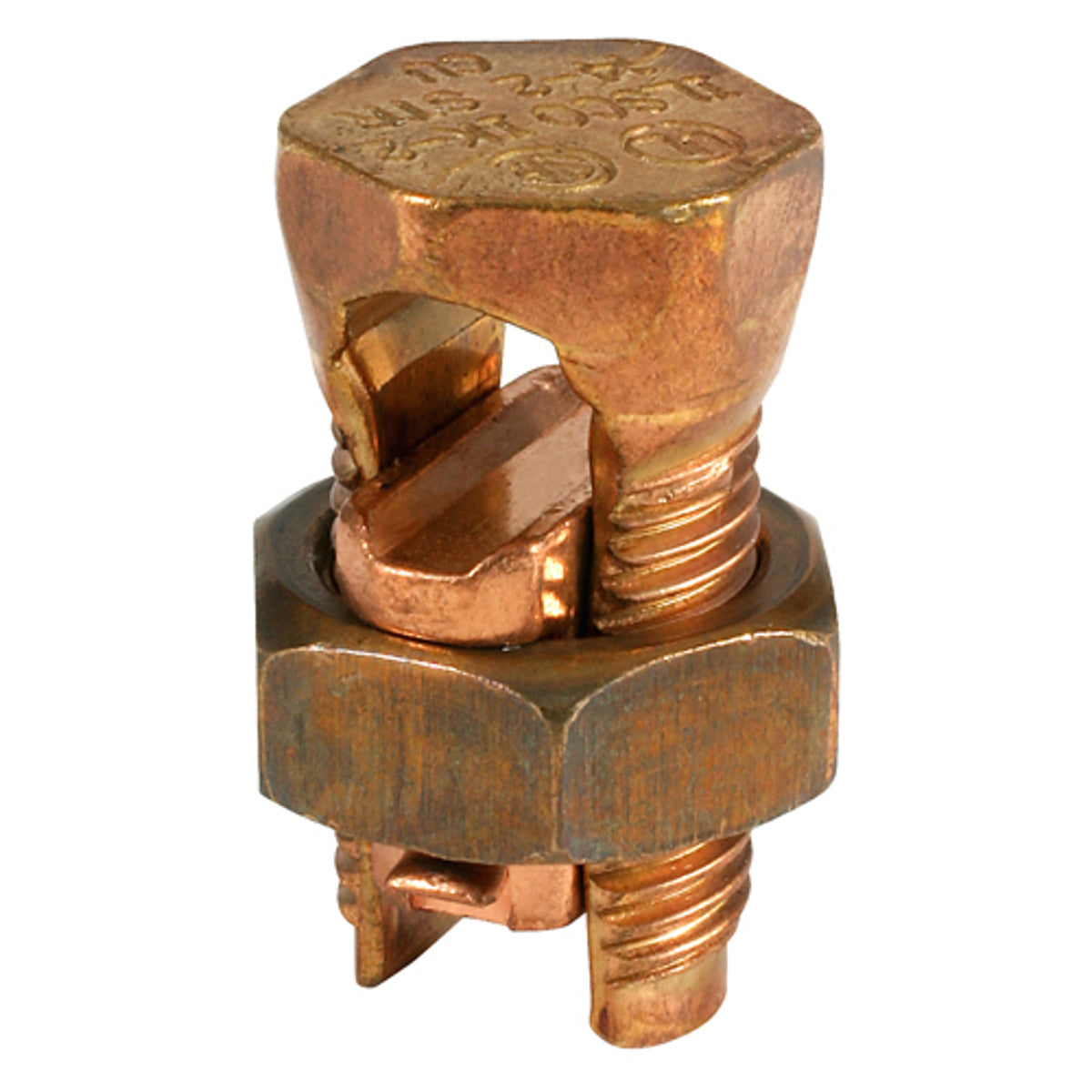

ILSCO IK-3/0 Copper Split Bolt, Conductor Range for Equal Main & Tap 3/0-2 Sol, UL, CSA

Product Description

The ILSCO IK-3/0 is a copper split bolt connector designed for conductor sizes ranging from three aught to two stranded. This connector meets UL and CSA standards, ensuring reliability for various electrical applications. It is suitable for main and tap connections.

• Manufactured from high strength copper alloy for durability.
• Designed to provide maximum conductivity with high breakage resistance.
• Approved for use in circuits rated at thirty-five kilovolts or less.

Product Highlights

This connector is ideal for both residential and commercial use where secure electrical connections are required.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: IK-3/0
• Conductor Material: Copper
• Maximum Run Conductor Size: 3/0 AWG Stranded
• Maximum Tap Conductor Size: 3/0 AWG Stranded
• Minimum Run Conductor Size: 2 AWG Solid
• Minimum Tap Conductor Size: 12 AWG Solid
• Country of Origin: United States
• UPC: 783669470161
