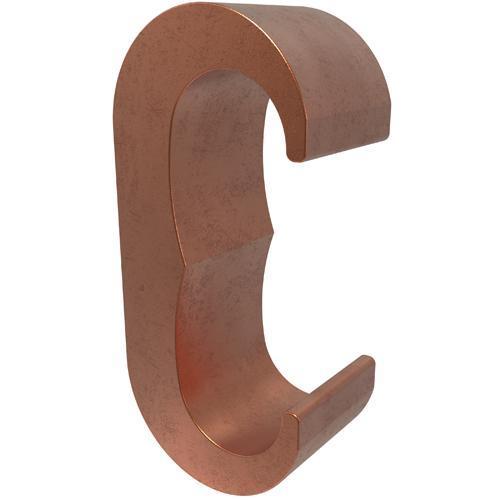

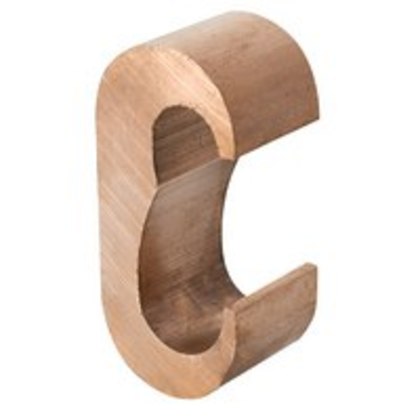

Ilsco ELT-8 Permaground Copper Grounding E Crimp 500-300

Product Description

The ILSCO ELT-8 Permaground Copper Grounding E Crimp has a main conductor range of 500 kcmil - 300 kcmil and is UL and CSA listed. This copper crimp provides maximum conductivity and easy identification. It is clearly marked with wire size and die index for easy tooling recommendation and is rated for direct burial in earth or concrete.

• Copper Grounding E Crimp
• UL Listed
• CSA Listed

Product Highlights

The ILSCO ELT-8 grounding crimp is range taking to reduce inventory and give application flexibility. It may be used in ground grid applications and is DB direct bury rated.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: ELT-8

Technical Specifications

• ILSCOs Die Index Number: 1011
• Height (IN): 2.818
• Height (mm): 71.5772
• Length (IN): 1.328
• Length (mm): 33.7312
• Width (IN): 0.875
• Width (mm): 22.225
• Conductor Type: Stranded
• Conductor Material: Copper
• Connector Finish: Bare
• Material: Copper
• Conductor Range CU Stranded (Primary, run, main, line): 500 kcmil - 300 kcmil
• Conductor Range CU Stranded (Secondary, tap, load): 500 kcmil - 300 kcmil
• Ground Rod Size: 5/8
• Rebar Size(s) Main: #5 (5/8)
• Rebar Size(s) Secondary: #6 (3/4)
• Direct Burial: Yes
• Dual Rated: No
• NEMA Code: S-573-3
• Applications: Copper Compression Grounding E Crimp Applications
• Brand: Ilsco
• Sub Brand: ILSCO
• Product UPC: 78366925744
• Height: 2.818 Inch
• Length: 1.328 Inch
• Width: 0.875 in
• Type: ELT:COPPER E CRIMP
• Standards: California Proposition 65
• UNSPSC: 39121448
• Specifications: #5 to #6 Rebar
• Dimensions: 7/8 in W
