Product Description

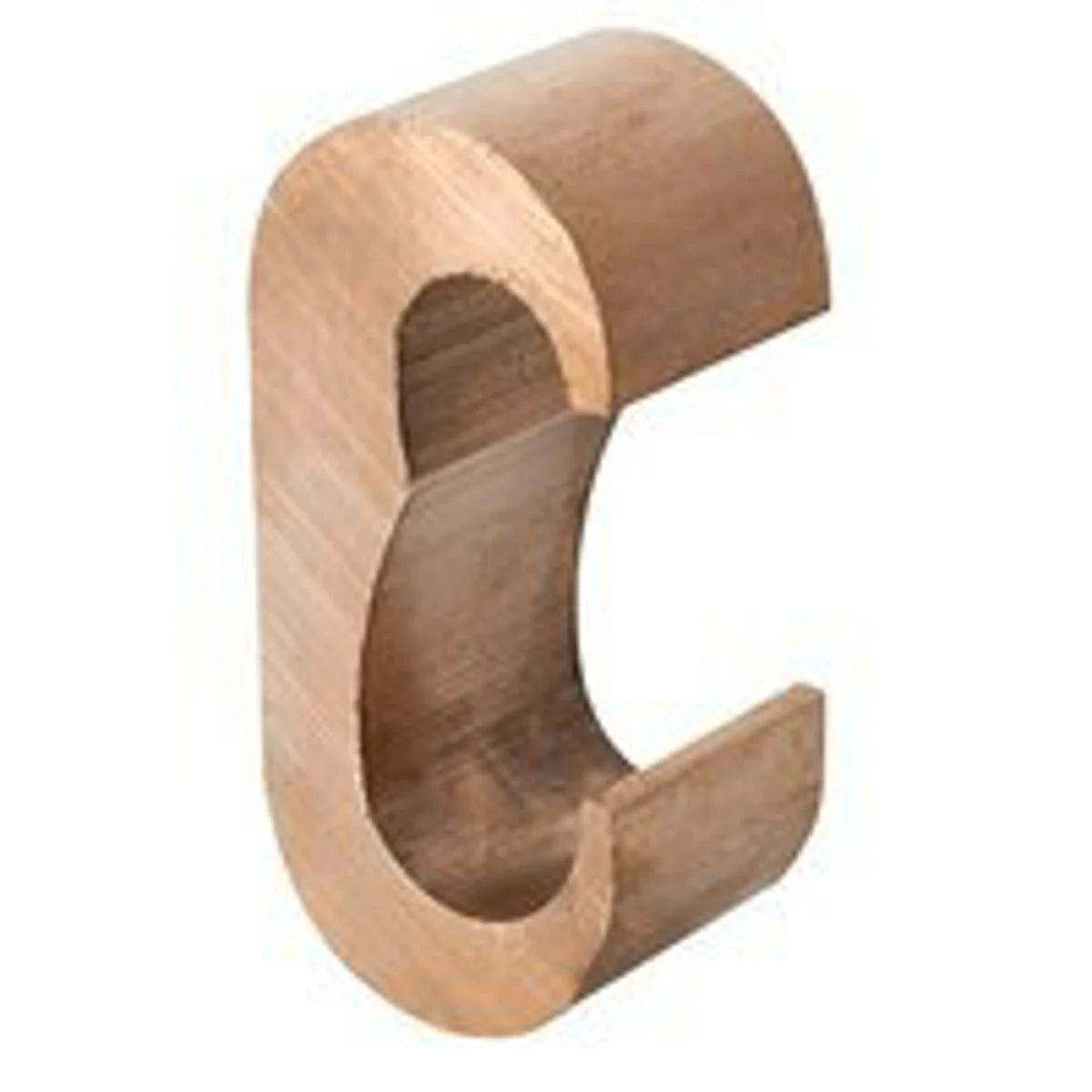

The ILSCO CU CMP (R)300-500 (T)3/0-250 BUL CSA, with MPN ELT-6, is a compression connector designed for electrical wiring applications. This connector is ideal for connecting copper conductors in a range of sizes, specifically for main sizes of three hundred to five hundred kcmil and tap sizes of three AWG to two hundred fifty kcmil. This connector assures secure and efficient connections in various environments.
- Designed for copper conductors
- UL listed and CSA certified for safety
- Applicable for direct burial in earth or concrete
Product Highlights
This connector is lightweight and made from copper alloy, providing excellent conductivity while preventing corrosion. It is suitable for use in various applications and has wide compatibility with numerous tools.
Product Information
Standard Information
-
Brand: ILSCO
-
Manufacturer: ECM Industries
Technical Specifications
-
Catalog Number: ELT-6
-
UPC: 783669257403
-
Main/Run Size: 300 to 500 kcmil
-
Tap Size: 3/0 AWG to 250 kcmil
-
Material: Copper Alloy
-
Dimensions: 7/8 in L
-
Conductor Type: Stranded Copper
-
Standards/Approvals: CSA Certified, RoHS Compliant, UL E34440 Listed
-
Package Weight: 1.033 L
