Ilsco CSWS-300-38 SureCrimp Copper Compression Lug 300 kcmil 3/8 inches 10pk

Product Description

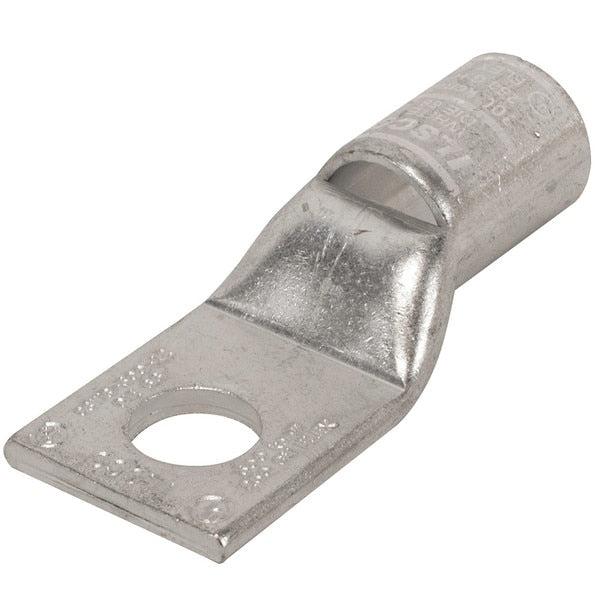

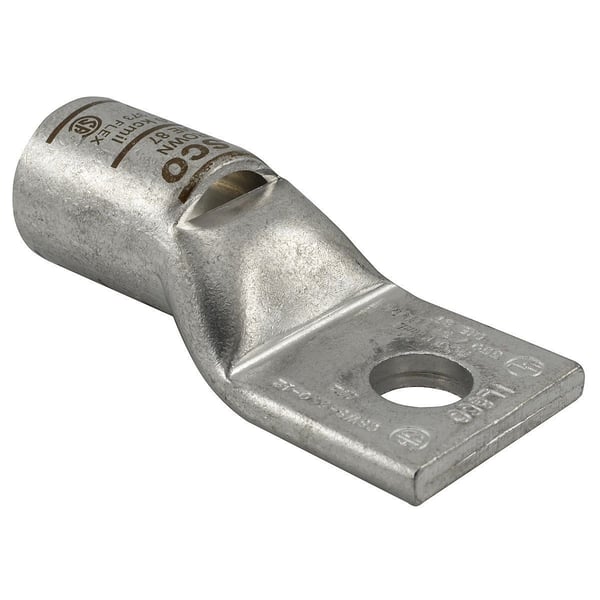

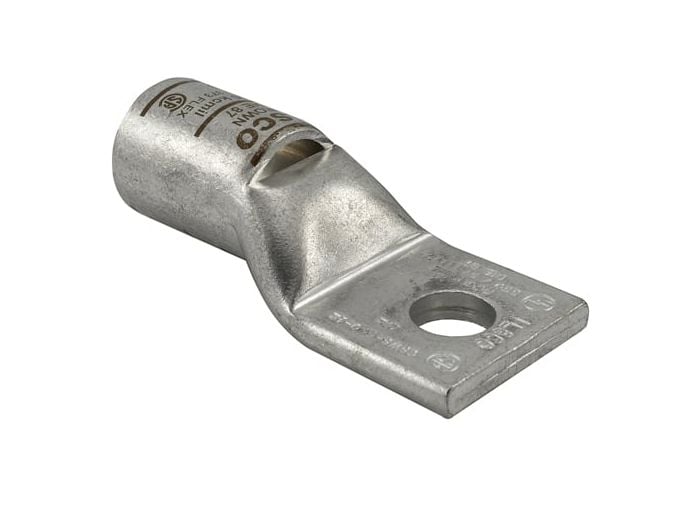

The ILSCO CSWS-300-38 SureCrimp Copper Compression Lug is a standard barrel, 1-hole lug with a sight hole. Designed for wire size 300 kcmil and a bolt/stud size of 3/8", it is rated up to 35kV at 90°C. It features a chamfered wire entry for easy installation.

• Standard barrel, 1-hole lug with sight hole
• Suitable for use in circuits rated 35KV or less
• UL Listed and CSA Certified

Product Highlights

This copper compression lug ensures a secure and reliable connection for various electrical applications.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CSWS-300-38
• Country of Origin: Mexico

Technical Specifications

• Wire size: 300 kcmil
• Bolt/Stud Size: 3/8
• Barrel Type: Standard
• Number of Holes: 1
• Features: Sight Hole
• Material: Copper
• Plating: Electro-Tin
• Product Series: CSWS
• Description: CU CMP 300 kcmil 13/32 T UL C SA
• Wire Size Range: 2/0 AWG-300 kcmil
• Stud Size: 3/8 "
• Number of Conductors: 1
• Color Code: White
• Brand: Ilsco
• MPN: CSWS-300-38
• UPC: 78366964185
• Manufacturer: Ilsco
• Type: Lugs
• Overall Length: 2.525 in
• Series: CSWS
• Temperature Rating: 90 deg C
• Tongue Size: 0.875 in L x 1.189 in W
• Voltage Rating: 600 VAC to 35 kV VAC
• Application: For Bonding, Grounding and Terminating Connector
• Standard & Approvals: UL 453G Listed, CSA LR-29601 Certified, NEBS3 Tested, RoHS Compliant
• Conductor Size: 300 kcmil
• Die Code: I-66
• Barrel Style: Short/Standard
• Barrel Size: 1.063 in L
• Mounting: 1-Hole
• Standards: California Proposition 65
• Allowable Gauge Range: 300
