Product Description

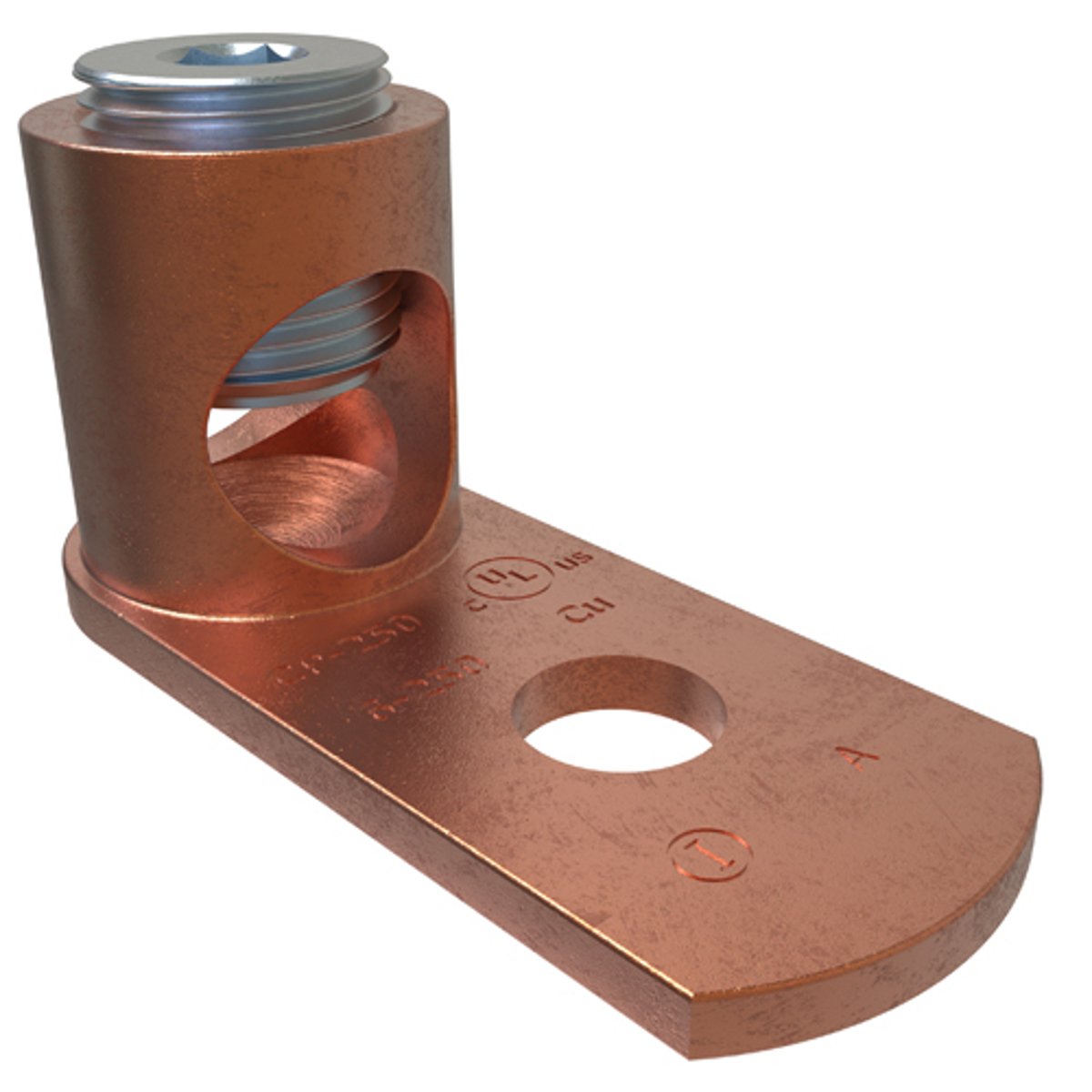

The ILSCO CP-250 is a copper post connector designed for conductor ranges from two hundred fifty to six AWG. This connector has a bolt size of three eighths of an inch and is suitable for various electrical applications.
- Compatible with conductor sizes from 250 KCMIL to 6 AWG
- Manufactured from high conductivity copper alloy
- Single bolt hole for secure mounting
Product Highlights
The ILSCO CP-250 offers versatility and efficiency, suitable for many mechanical connections in electrical installations.
Product Information
Standard Information
-
Catalog Number: CP-250
-
Brand: ILSCO
Technical Specifications
-
Max Conductor Size: 250 KCMIL
-
Min Conductor Size: 6 AWG
-
Material: High Conductivity Copper Alloy
-
Pad Size: 15/16 inch W
-
Stud Size: 3/8 inch
-
Screw Type: 1/2 inch Hex
-
Voltage Rating: 2000 VAC
-
Temperature Rating: 90 deg C
