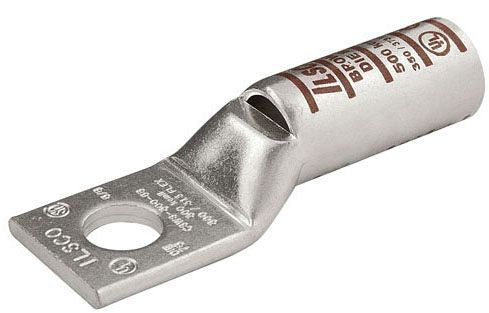

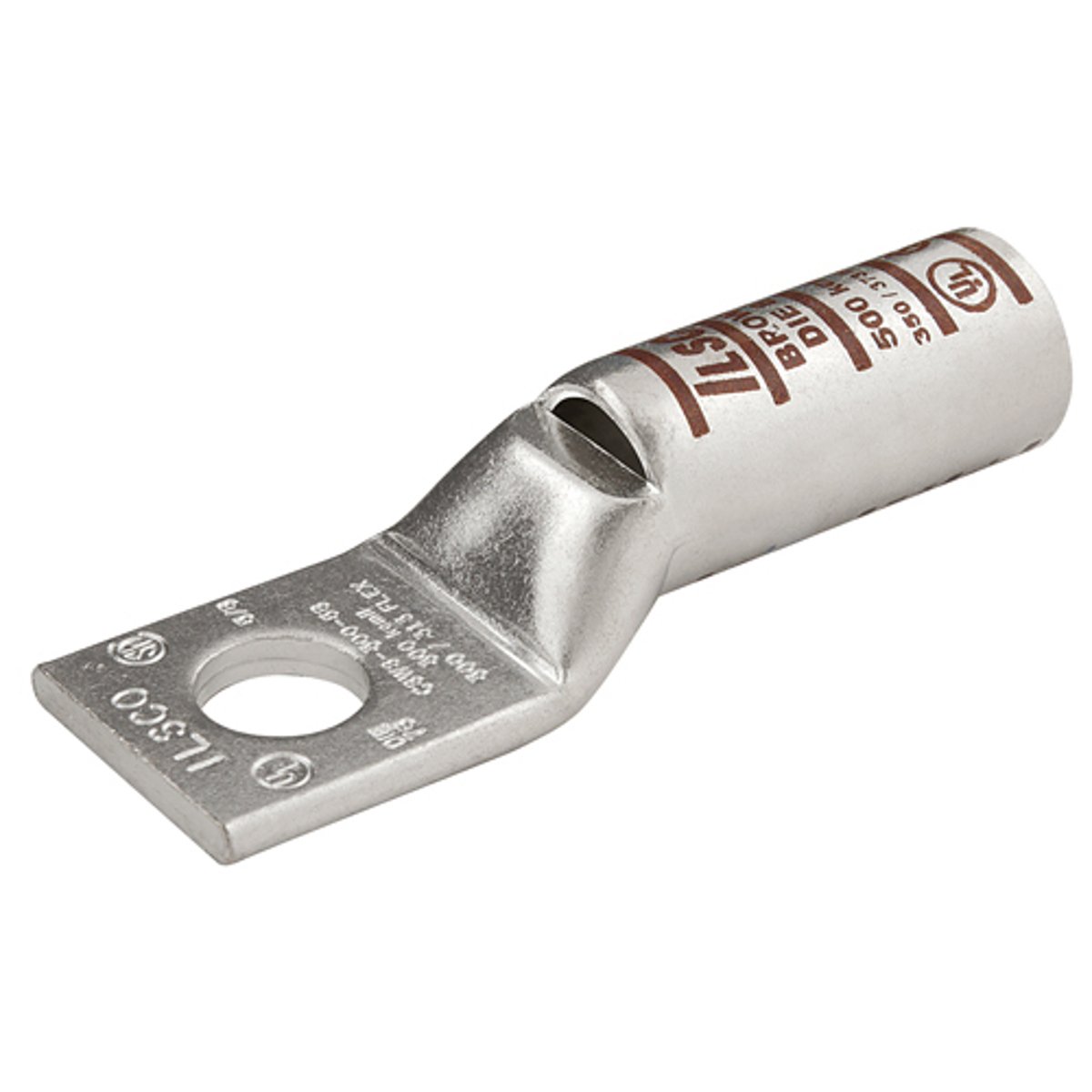

ILSCO CLWS-600-12 Surecrimp Copper Compression Lug 600 1 Hole 1/2in Bolt Size

Product Description

The ILSCO CLWS-600-12 is a reliable copper compression lug designed for electrical applications. This product features a conductor size of six hundred and is constructed for durability and high conductivity. The compression lug is suitable for various installation needs where secure connections are critical.

• Material: Seamless Electro-Tin Plated Copper
• Die Index: I-94
• UL Listed and CSA Certified

Product Highlights

This compression lug offers excellent crimping capabilities and is perfect for use in high voltage applications when proper spacing and insulation techniques are used.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: CLWS-600-12
• Conductor Size: 600 KCMIL
• Stud Size: 1/2 Inch
• Barrel Length: 2.687 Inch
• Number of Pad Holes: 1
• Country of Origin: United States
• Approval: UL 453G, UL 467, UL 486A/B, CSA
• Cross Reference Products: ABBInstall 54921BE, Ilsco CLNS-600-12, ThomasBett 54921BE
