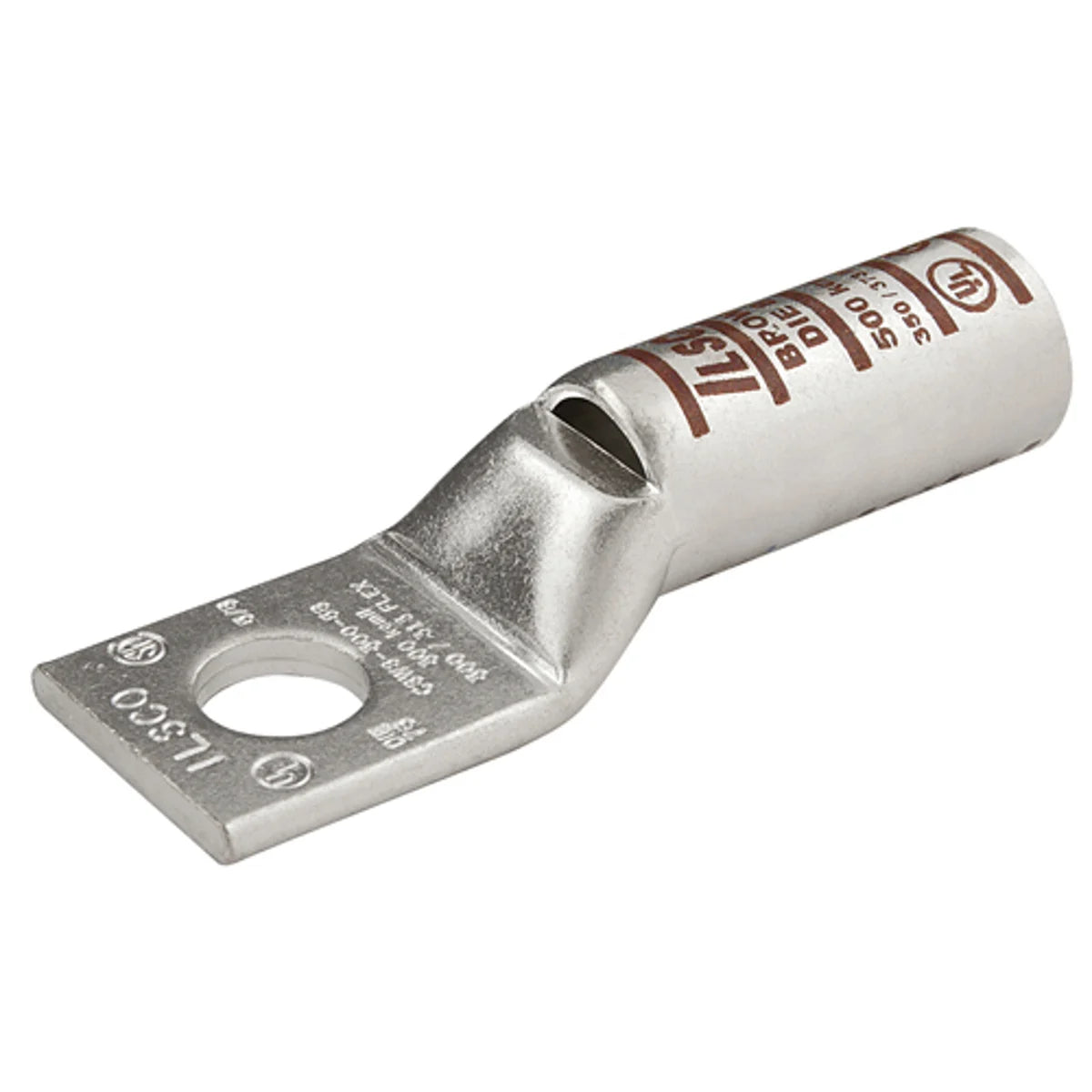

ILSCO CLWS-1-38 Surecrimp Copper Compression Lug 1 AWG 3/8 in

Product Description

The ILSCO CLWS-1-38 is a copper compression lug designed for electrical applications. This product is ideal for connecting conductors with a conductor size of one AWG and has a stud size of three-eighths inch. It features a long barrel for enhanced crimping capacity and a sight window for easy inspection of conductor insertion.

• Manufactured from high-strength seamless copper tubing.
• UL listed and CSA certified for safety and compliance.
• Suitable for circuits rated up to thirty-five kilovolts with proper installation techniques.

Product Highlights

This compression lug offers maximum conductivity and excellent crimping characteristics. It includes a chamfered entry to simplify conductor insertion and is color coded to identify the correct compression die.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Country of Origin: United States

Technical Specifications

• Catalog Number: CLWS-1-38
• Conductor Material: Copper
• Barrel Length: 1.375 inches
• Stud Size: 3/8 inch
• Voltage Rating: 600 VAC
• Die Index: I-37
• Material: Seamless Electro-Tin Plated Copper
• Color: Green
