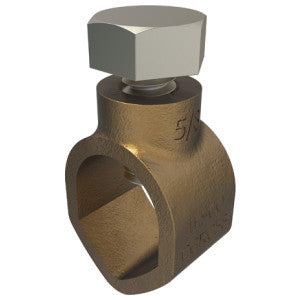

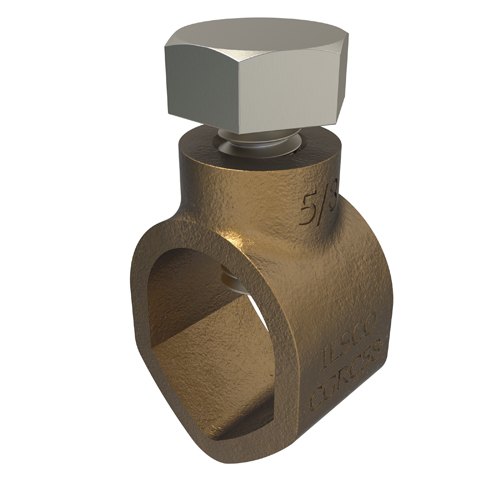

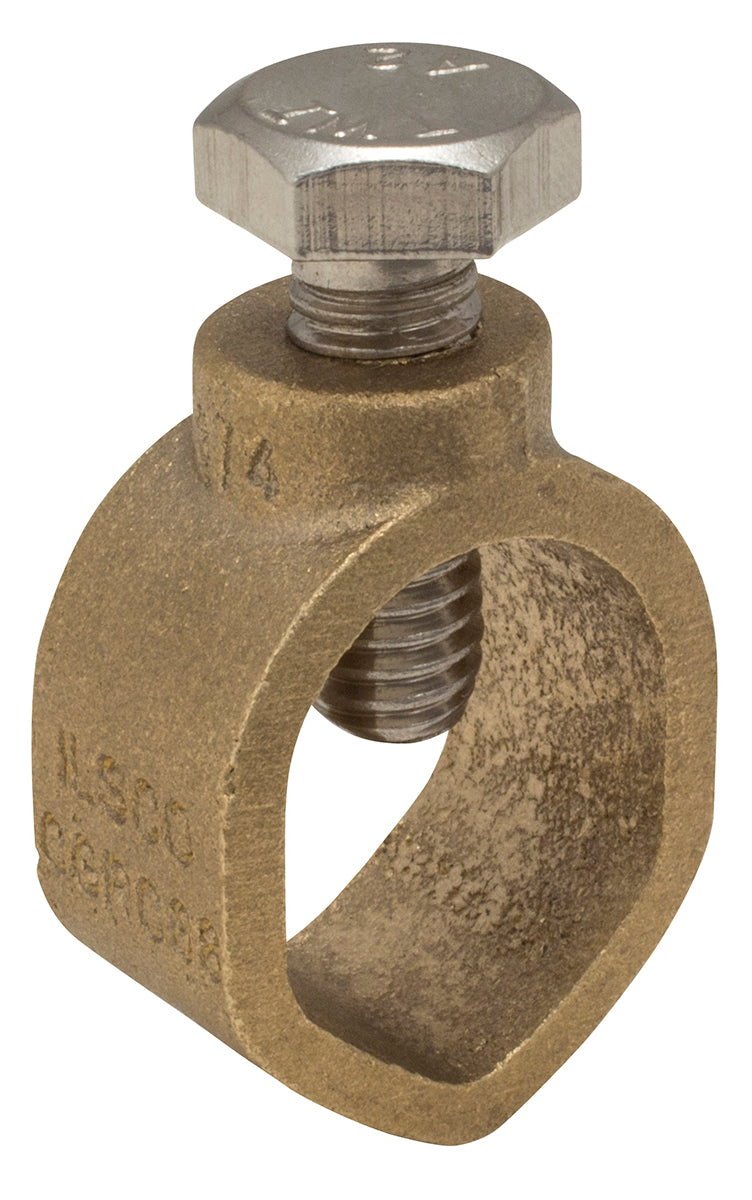

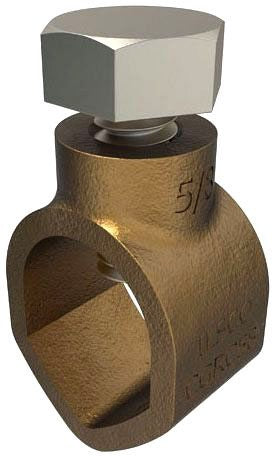

Ilsco CGRC-58 Permaground Bronze Ground Rod Clamp 5/8in

Product Description

Ilsco CGRC-58 is a Permaground Bronze Ground Rod Clamp designed for secure grounding connections. The clamp accommodates conductors ranging from 10 AWG to 2 AWG, making it suitable for various electrical applications. This clamp is compatible with ground rods sized 5/8 inches and is constructed to ensure durability and reliability in both direct burial and concrete settings.

• Constructed from cast bronze material
• Meets UL 467 and CSA standards
• Single conductor installation with a hex head screw

Product Highlights

This product is specifically designed for grounding applications to provide effective electrical connections without compromising safety.

Product Information

Standard Information

• Catalog Number: CGRC-58
• Manufacturer: Ilsco

Technical Specifications

• Material: Bronze
• Conductor Size: 10 to 2 AWG
• Ground Rod Size: 5/8 inches
• Rebar Size: #5
• Approvals: UL 467, CSA Certified
• Packaging Quantity: 50 per package
• Weight: 25 lbs.
• Country of Origin: India
