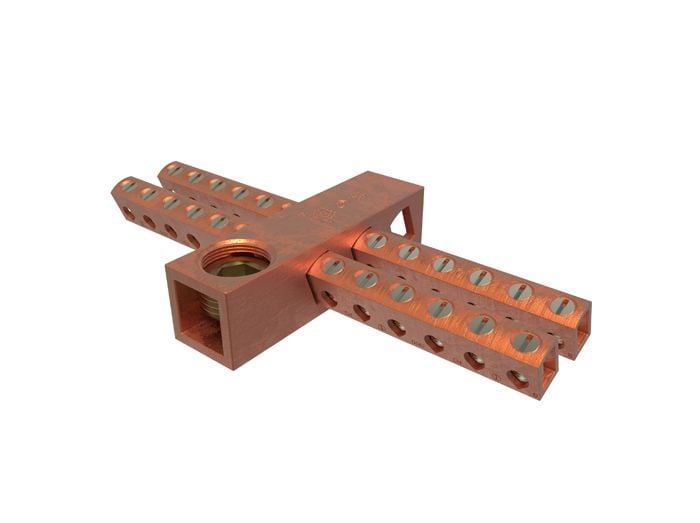

Ilsco CAN-300 Copper Neutral Bar 24 Ports

Product Description

The ILSCO CAN-300 is a copper neutral bar with a conductor range of 250-6 main and 6-14 tap, featuring 24 ports. It is manufactured from high-strength copper tubing, providing maximum conductivity. The circuit bars are inserted at a 20-degree angle for easy wire insertion. This neutral bar is RoHS compliant and range-taking.

• Manufactured from High Strength Copper Tubing
• Provides Maximum Conductivity
• Circuit Bars Inserted at 20 Angle

Product Highlights

The ILSCO CAN-300 copper neutral bar features 24 ports, high conductivity, and easy wire insertion.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CAN-300

Technical Specifications

• Manufacturer Part Number: CAN-300
• Manufacturer: Ilsco
• Product Series: CAN
• Family Series: Ilsco Grounding, CAN Series
• Description: Ground Neutral Bus, 24 Taps, 250MCM- 6AWG Cond Main, 6-14AWG on Taps
• Number of Taps: 24
• Stack Type: Two Bar Stack - Angled 20 deg
• Wire Size Range: 14-6 AWG
• Includes Mounting Block: No
• Material: Copper
• AC Voltage: 600 VAC
• Approvals: CSA, UL
• Comments: R-16 Phenolic mounting block available
• Number of Ports: 24
• Contact Material: Copper
• Type: Load Center Ground/Neutral Bar
• Item Length: 2-5/16 in
