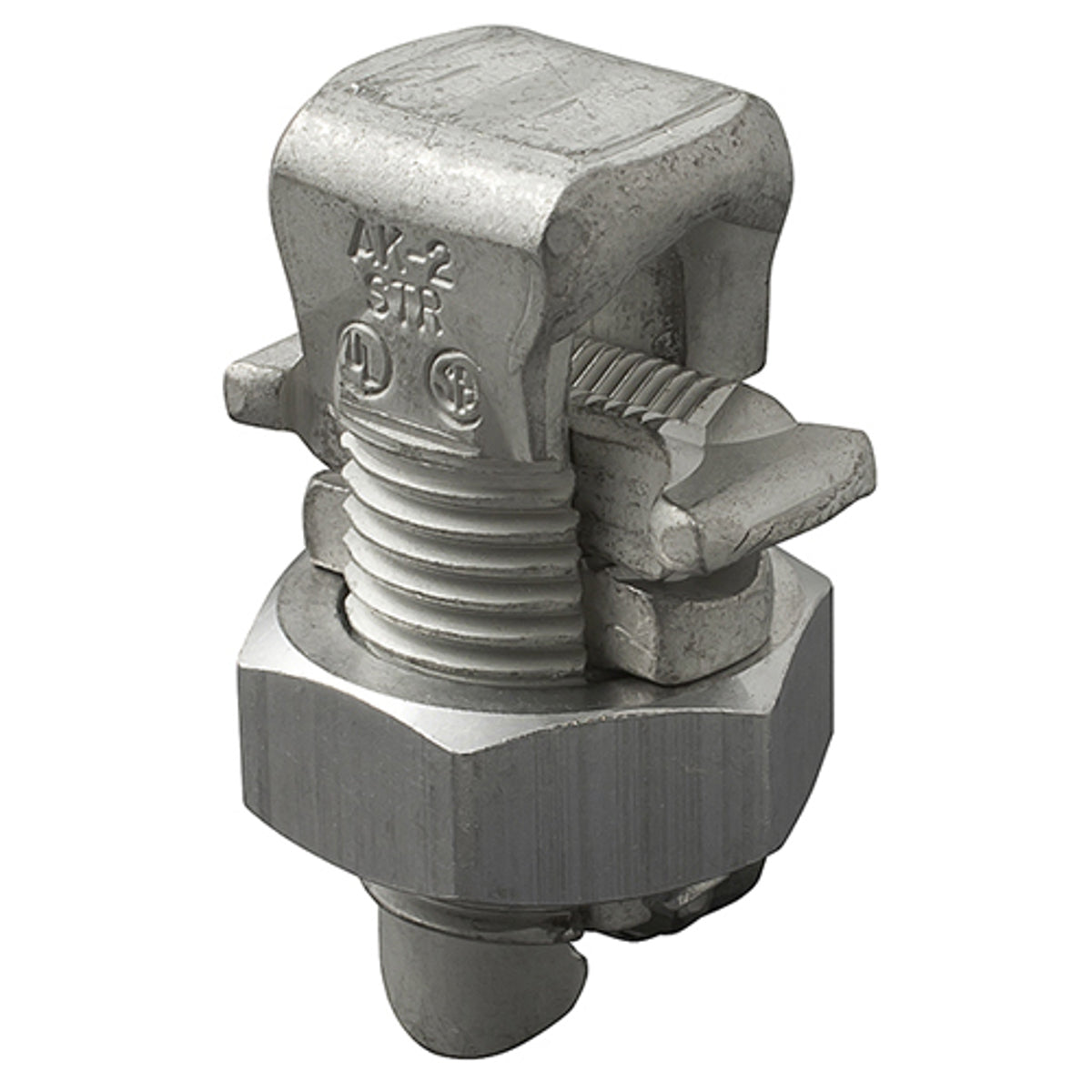

ILSCO AK-2 Aluminum Split Bolt, Main Range 2-6, Tap Range 2-8, Tin Plated, UL, CSA

Product Description

The ILSCO AK-2 is an aluminum split bolt connector designed for reliable wire termination. This product is suitable for applications involving copper and aluminum conductors. It provides a strong connection while supporting a range of conductor sizes.

• Maximum run conductor size of two AWG stranded.
• Compatible with tap conductors up to two AWG stranded.
• Made from heat-treated aluminum alloy for strength.

Product Highlights

This connector features a hex head design for easy installation. The triangular edges enhance conductivity by breaking through surface oxides.

Product Information

Standard Information

• Brand: ILSCO
• MPN: AK-2

Technical Specifications

• Catalog Number: AK-2
• Manufacturer: ECM Industries
• Country of Origin: United States
• Material: Electro-Tin Plated Heat Treated Aluminum Alloy
• Approval: UL 670B, CSA
• Maximum Run Conductor Size: 2 AWG Stranded (Compact)
• Minimum Run Conductor Size: 6 AWG Stranded (Compact)
• Maximum Tap Conductor Size: 2 AWG Stranded
• Minimum Tap Conductor Size: 8 AWG Stranded
• UPC: 783669008326
