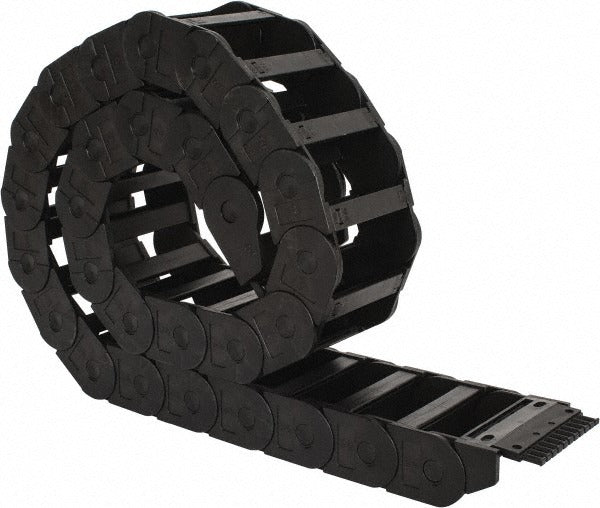

Igus 350-115-100 6' Snap Open Cable Carrier

Product Description

The IGUS 350-115-100 6' is a snap-open cable and hose carrier designed to guide, protect, and manage cables and hoses in dynamic applications where repeated movement occurs. Constructed from Igumid G, a glass-fiber-reinforced nylon compound, this carrier offers a rigid yet lightweight structure suited for industrial automation, machine tools, and similar equipment. The inside channel measures 4.53 inches wide by 1.77 inches tall, providing a clear run for bundled cables or hoses. With a bend radius of 3.94 inches, it handles continuous flex cycles without fatiguing the conductors inside. Installation and maintenance technicians in manufacturing and mechanical service environments are the primary installers.

This carrier is suited for industrial machinery, automation equipment, and any application requiring organized routing of power, signal, or fluid lines through a moving axis. The 6-foot overall length spans typical short-travel linear axes and robotic arm segments. The snap-open design along the outer edge allows technicians to access interior cables without disassembling the carrier, reducing downtime during cable replacement or inspection. The 15-section construction distributes flex stress evenly across the travel path, extending service life in continuous-cycle installations.

Key Features

• Snap-open outer edge for fast cable access without full disassembly
• Igumid G construction: glass-fiber-reinforced nylon rated to UL 94 HB and VDE 0304 IIC
• Inside channel: 4.53 inches wide x 1.77 inches tall for generous cable bundling
• 3.94-inch bend radius supports tight routing paths without over-bending cables
• 15 articulating sections with a 2.64-inch link-to-link pitch for smooth, controlled flex
• Outside envelope of 5.31 inches wide x 2.52 inches tall for mounting clearance planning

Compatibility

Designed as an OEM-style or aftermarket cable carrier for industrial automation systems, machine tool axes, and similar dynamic cable management applications requiring a snap-open style carrier in the 350-series envelope.

Installation Notes

Installation is typically performed by industrial maintenance technicians or machine builders following the equipment manufacturer's cable management guidelines. De-energize all circuits routed through the carrier before opening the snap links or routing new cables. Secure both end fittings to the fixed and moving attachment points before loading cables, and verify the bend radius clears surrounding structures throughout the full travel stroke. Do not exceed the rated inside fill capacity, as overfilling can increase wear on internal links during flex cycles.
