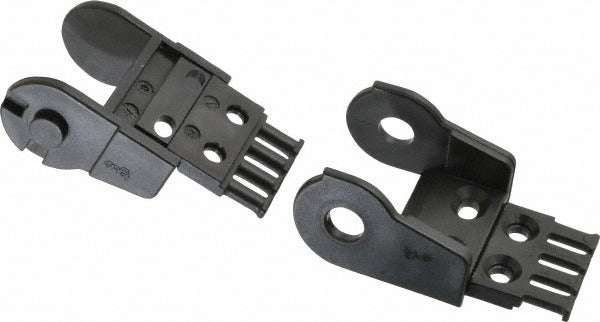

Igus 2030-12PZB Cable Carrier Open Mounting Bracket Set

Product Description

The IGUS 2030-12PZB is a plastic open mounting bracket set designed for use with cable and hose carrier systems. It provides a secure, open-style attachment point that allows cables and hoses to be routed or removed laterally without full disassembly of the carrier. The bracket set is constructed from plastic and is suited for use in light industrial, automation, and mechanical equipment installations where cable management and carrier support are required. The outside width is 2.13 inches and the outside height is 1.38 inches, with an inside width of 1.05 inches and an inside height of approximately 0.98 inches. A bend radius of 2.17 inches governs the minimum travel arc of the supported carrier.

This bracket set is appropriate for use with cable and hose carriers in environments where organized, protected routing of electrical cables or fluid lines is required. The open mounting style allows technicians to access the carrier interior without removing the bracket, which simplifies cable inspection and replacement. The 2030-12PZB is specified for use with the 200-03-055 carrier. Typical applications include CNC machines, robotic arms, linear slides, conveyor systems, and other machinery with moving cable or hose tracks. Installation is handled by mechanical or automation technicians in both OEM and field-service contexts.

Key Features

• Open mounting bracket style allows lateral cable access without full carrier disassembly
• Outside dimensions of 2.13 inches wide by 1.38 inches tall for precise carrier alignment
• Inside width of 1.05 inches and inside height of 0.98 inches accommodate standard carrier cross-sections
• 2.17-inch bend radius supports proper cable and hose travel arc geometry
• Plastic construction provides lightweight, corrosion-resistant mounting support
• Sold as a set; package quantity of 1 per unit ordered

Compatibility

Specified for use with the 200-03-055 cable and hose carrier. Designed as a replacement or supplemental mounting bracket set for compatible IGUS cable carrier systems sharing the same outside width and height profile.

Installation Notes

Installation is typically performed by mechanical or automation technicians. Power down or de-energize all associated equipment before accessing cable carrier systems. Ensure the bracket is mounted to a rigid surface capable of supporting the carrier load under full travel conditions. Follow the machinery manufacturer and any applicable local safety standards when routing cables or hoses through the carrier.
