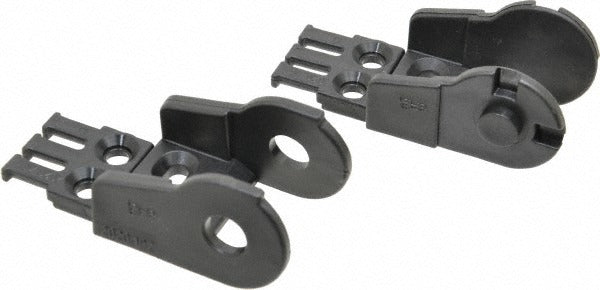

Igus 2020-12PZB Cable Carrier Mounting Bracket Set Open

Product Description

The IGUS 2020-12PZB is a plastic open-style mounting bracket set designed for cable and hose carrier systems. It secures cable carrier chains to machine frames, cable trays, or equipment enclosures, providing a stable anchor point for dynamic cable management applications. The bracket set features a 1.61 inch outside width and 1.38 inch outside height, with an inside width and inside height of 0.98 inches each. A 2.17 inch bend radius accommodates standard carrier chain movement. Electricians, machine builders, and automation technicians typically install this hardware during cable carrier assembly or replacement.

This mounting bracket set is used in industrial, commercial, and automation environments where cable and hose carriers route power, signal, or fluid lines through moving machine axes. It is specified for use with the 200-02-055 carrier. The open mounting bracket style allows for easy cable carrier installation and removal without full disassembly, making it well suited for maintenance-heavy applications and field service work.

Key Features

• Open mounting bracket style for straightforward carrier attachment and removal
• 1.61 inch outside width and 1.38 inch outside height for compact fitment
• 0.98 inch inside width and 0.98 inch inside height to match carrier chain interior dimensions
• 2.17 inch bend radius supports proper carrier chain articulation
• Plastic construction reduces weight and resists corrosion in most industrial environments
• Sold as a set, package quantity of one

Compatibility

Designed for use with the 200-02-055 cable and hose carrier. Confirm carrier chain inside dimensions and bend radius requirements before ordering to ensure proper fitment.

Installation Notes

Install by qualified mechanical or electrical technicians familiar with cable carrier systems. De-energize all circuits routed through the carrier before beginning bracket installation or replacement. Verify mounting surface alignment to prevent side-loading on the carrier chain during operation. Consult the carrier manufacturer guidelines and any applicable NEC or local electrical code requirements for cable management in your application.
