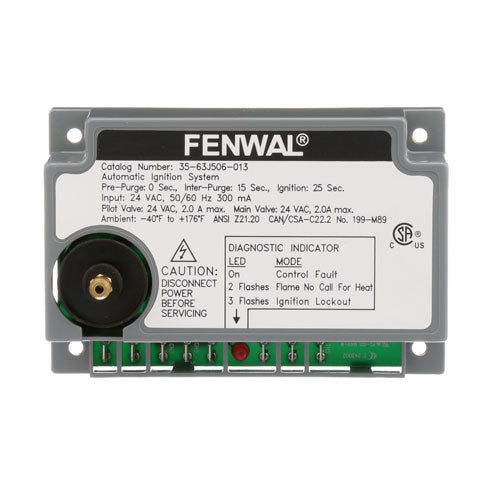

Ignition Module 3 Tries 8009522 for AllPoints 8009522

Product Description

This item for AllPoints 8009522 is an ignition module designed for automatic service with three ignition tries. This module is suitable for various Garland models including CG-24R, CG-36R, CG-48F, CG-48R, CG-60F, CG-60R, CG-72F, CG-72R, GAW-24, GAW-36, GAW-48, GAW-60, and GAW-72.

• Input voltage of twenty-four volts AC, 50/60 Hz
• Pre-purge time of zero seconds, with an inter-purge of fifteen seconds
• Operating range from negative forty degrees Fahrenheit to positive one hundred seventy-six degrees Fahrenheit

Product Highlights

The ignition module provides a reliable service option for specific Garland heating equipment. It offers a straightforward three-tries ignition process, enhancing efficiency during operation.

Product Information

Standard Information

• Weight: 0 pounds
• Dimensions: 1 inch x 1 inch x 1 inch

Technical Specifications

• Input: 24 VAC, 300 mA
• Pilot Valve: 24 VAC, 2.0 Max
• Main Valve: 24 VAC, 2.0A Max
• Ambient Temperature: -40°F to +176°F
