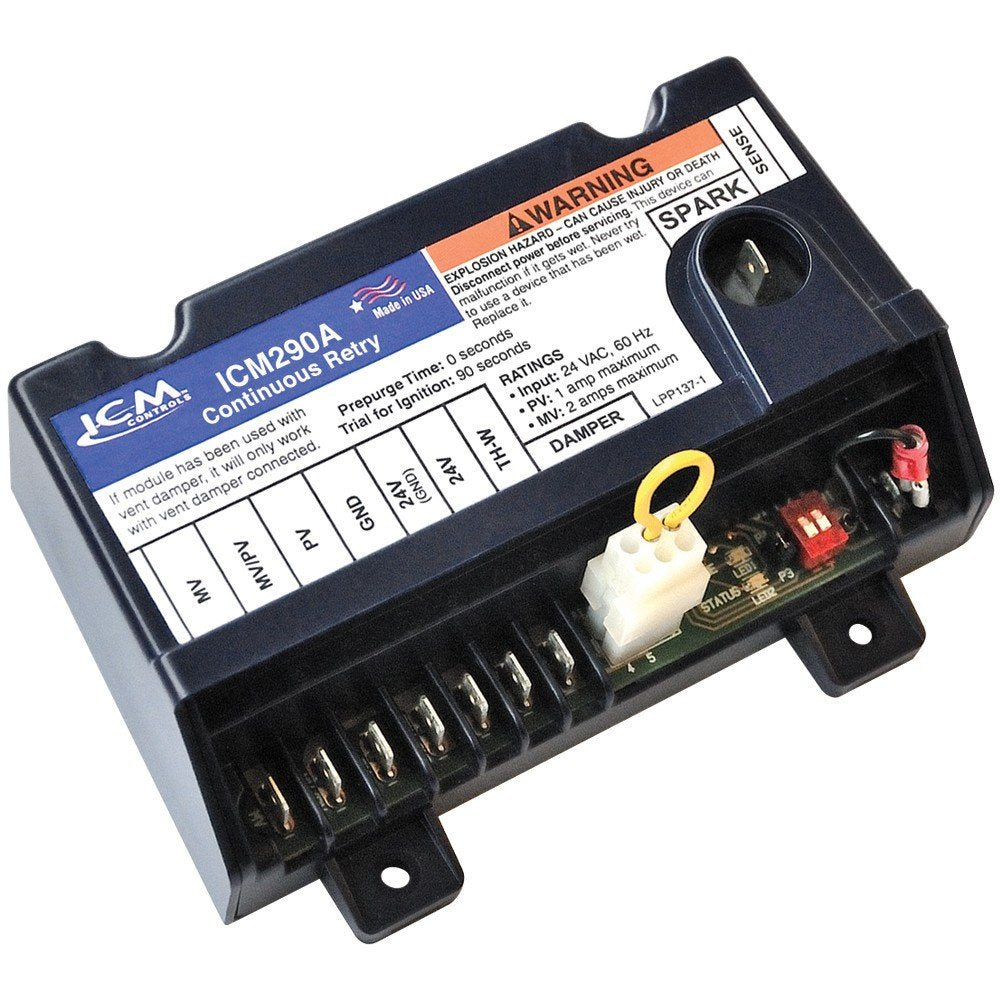

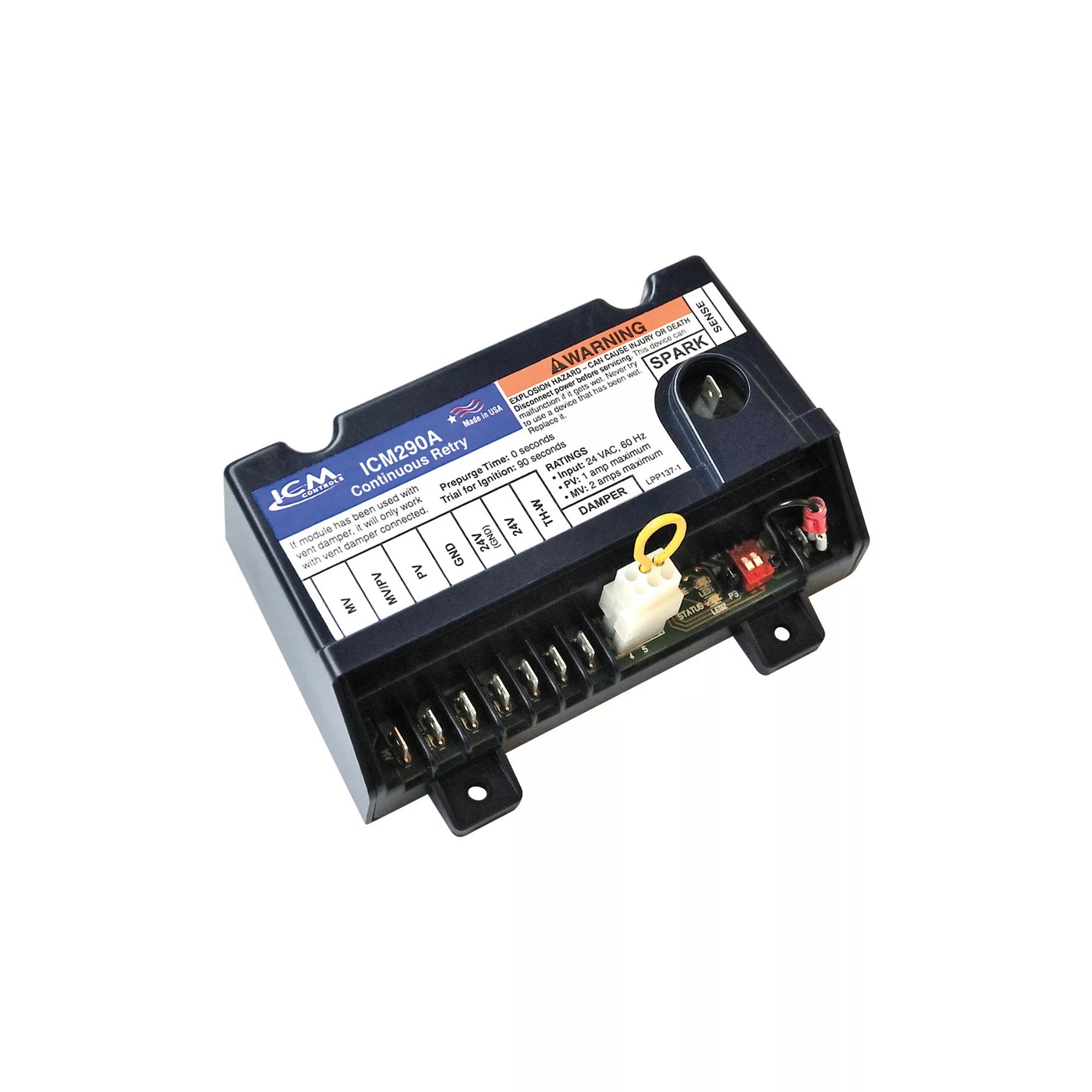

Icm Controls ICM290A Oem Replacement Honeywell S8610u Dsi Module

Product Description

The ICM CONTROLS ICM290A is an OEM replacement for the Honeywell S8610U DSI module. This universal intermittent pilot gas ignition control is a low-cost replacement for Honeywell, White Rogers, Robertshaw, and others. It is designed for gas-fired furnaces, boilers, and other heating appliances and works with or without a vent damper connected, and with both LP and natural gas.

• OEM Replacement
• Universal Intermittent Pilot Gas Ignition Control
• Switch Selectable Pre-Purge and Ignition Time Trials with Permanent Lock

Product Highlights

Universal intermittent pilot gas ignition control for gas-fired furnaces, boilers, and other heating appliances.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: ICM290A
• Country of Origin: United States

Technical Specifications

• Brand: ICM Controls
• Stage: Single
• Width: 5.375"
• Height: 2"
• Length: 4"
• Prop 65: Yes
• Voltage: 18-32 VAC
• Cycle/Hertz: 50/60 Hz
• Control Voltage: 24 VAC
• Minimum Operating Temperature: -40 F
• Maximum Operating Temperature: 165 F
• Frequency: 50/60 Hz
• Product Depth: 4 Inches
• Anticipator Setting: 0.3A plus valve load @ 24VAC
• Trial for Ignition: 15 or 90 sec (switch selectable)
• LEDs: Green Status LED provides system status and error codes - Yellow Flame LED indicates flame presence and flame strength
