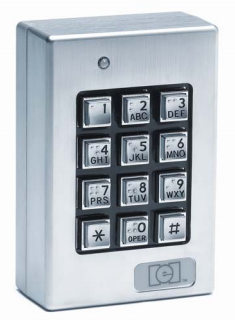

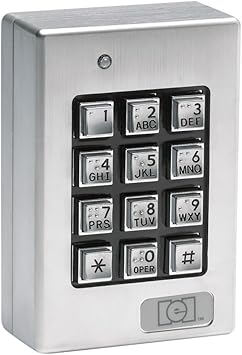

IEI 212SE Sealed Environmental Keypad

Product Description

The IEI 212SE sealed environment keypad features a metal housing designed to resist corrosion. This keypad includes a Braille, alpha-numeric layout and provides feedback through an internal sounder. A bi-color LED indicates operational status. It can mount directly on a standard single-gang electrical box or on most flat surfaces.

• Indoor/outdoor keypad with a durable metal housing
• Vandal resistant, surface mount design
• Compatible with wall, post, or gooseneck mounting options

Product Highlights

This keypad is suitable for use with automatic gate openers and can tolerate temperatures from -20F to 130F.

Product Information

Standard Information

• Brand: IEI
• Model: 212SE

Technical Specifications

• Keyboard Description: Membrane
• Material: Metal
• Users: 120
• Programmable Timed Relays: 4 on-board
• Current Draw: 108 mA maximum (add 30 mA for each additional relay)
• Operation Voltage: 12-24 VAC/VDC - auto-adjusting
• Dimensions: 3.00 inches x 4.50 inches x 1.55 inches
• Temperature Tolerance: -31°F to 151°F (-35°C to 66°C)
