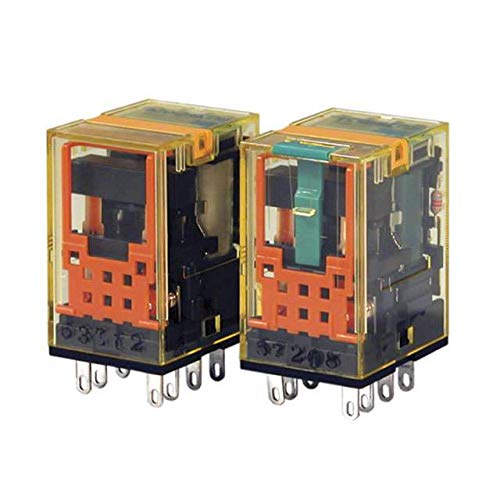

IDEC RU2S-A110 DPDT Relay 110VAC 10A Plug-In

Product Description

The IDEC RU2S-A110 is a DPDT power relay designed for reliable operation in industrial environments. This relay operates at 110VAC with a current capacity of 10 amps, using a plug-in mounting style for easy installation.

• Double-pole, double-throw (DPDT) configuration allows control over two circuits simultaneously.
• Supports a coil voltage of 110 to 120 VAC for versatile use across electrical systems.
• Environmental conditions rating from -55 to 70 degrees Celsius ensures performance in extreme environments.

Product Highlights

This relay is built for durability with features like silver alloy contacts and a robust plug-in terminal. It serves a critical role in systems where dependable switching of high-current loads is required.

Product Information

Standard Information

• Brand: IDEC
• MPN: RU2S-A110

Technical Specifications

• Amperage Rating: 10 Amps
• Coil Voltage: 110 to 120 VAC
• Contact Form: DPDT
• Contact Rating: 250 VAC/30 VDC
• Dimensions: 27.5 mm H x 21 mm W
• Mounting Type: Socket
• Number of Pins: 8
• Temperature Rating: -55 to 70 deg C
• Standards/Approvals: UL Listed, CSA Certified, EN Compliant
