IDEC RJ1S-C-A24 Relay Plug-In SPDT 12A 24VAC

Product Description

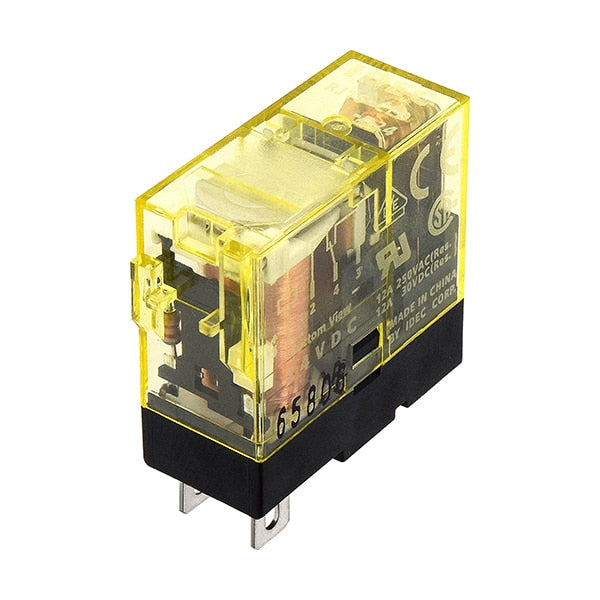

The IDEC RJ1S-C-A24 is a slim power relay designed for plug-in use with SPDT configuration. This relay has a contact rating of 12A and operates at 24VAC. It is suitable for various applications such as industrial machine control, control panels, and energy management systems. The compact design helps to save space in control panels.

• Power relay with SPDT configuration
• Compact design for reduced space
• Operates at a voltage of 24VAC

Product Highlights

This relay is ideal for controlling various industrial applications where reliable switching is essential.

Product Information

Standard Information

• Product Type: Slim Power Relay
• Brand: IDEC

Technical Specifications

• Number of Poles: 1
• Contact Configuration: SPDT
• Terminal Shape: Plug in Terminal
• Contact Structure: Single Contact
• Switching Current Range: 12A
• Rated Voltage: 24VAC
• Coil Voltage: 24VAC
• Relay Mounting: Socket
• Contact Voltage VAC: 250V
• Relay Type: Power - General Purpose
• Operating Temperature: -4 to 149 °F (-20 to 65 °C)
• Mechanical Life: 30,000,000
• Wire Size: Maximum up to 2-#12 AWG
• Warranty: 1 Year
• Application: Industrial Machine Control, Control Panel, Energy Management
