Product Description

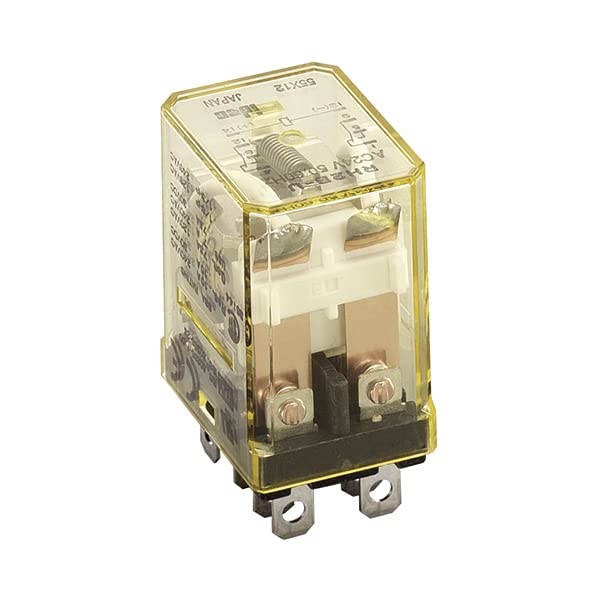

The IDEC RH2B-ULAC24V is a compact power relay designed for robust and efficient performance in industrial settings. This product from IDEC ensures reliable operation with a DPDT contact form and a 24 VAC coil voltage.
- Dual-pole, double-throw (DPDT) setup for versatile circuit control
- Compact dimensions (27.5 mm height x 21 mm width) for space-sensitive installations
- Operational temperature range from minus 30 to 70 degrees Celsius
Product Highlights
This IDEC relay is suitable for various industrial applications due to its year-round durability and compatibility with numerous socket types, making it a valuable addition to control systems.
Product Information
Standard Information
-
Brand: IDEC
-
Model: RH2B-ULAC24V
Technical Specifications
-
Amperage Rating: 10 A
-
Coil Voltage: 24 VAC
-
Contact Form: DPDT
-
Contact Rating: 110/220 VAC/30 VDC
-
Mounting Type: Socket
-
Terminal Type: Blade
-
Number of Poles: 2
-
Temperature Rating: -30 to 70 degrees Celsius
-
Standards/Approvals: CSA Certified, CE Marked, cRJus Certified, TDV Approved
-
Manufacturer Part Number: RH2B-ULAC24V
