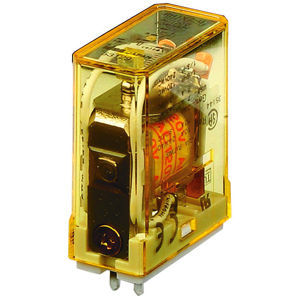

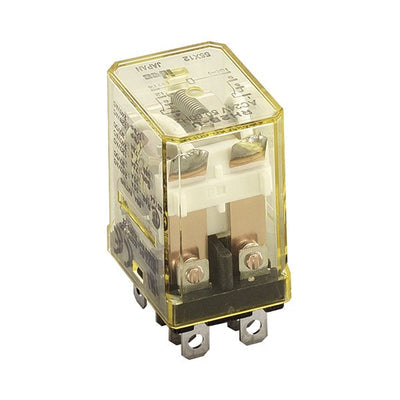

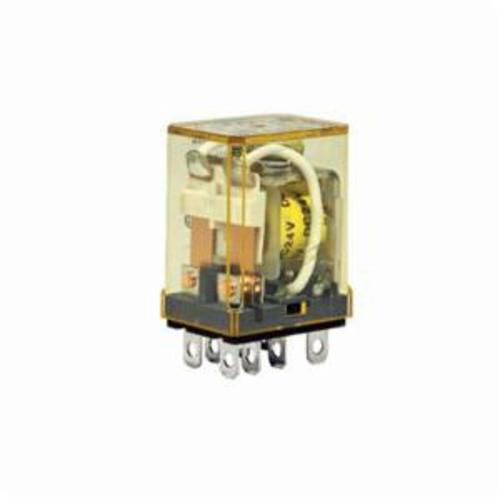

IDEC RH2B-ULAC110-120V Power Relay 110/120VAC 10A DPDT 27.5x21x42mm

Product Description

The IDEC RH2B-ULAC110-120V is a DPDT (double-pole, double-throw) power relay, operating at 110/120VAC and designed for versatile industrial applications. This compact and robust relay ensures reliable performance with a 10A switching capacity in demanding environments.

• DPDT contact configuration allows control of two separate circuits.
• Built-in indicator provides real-time operational status.
• Durable construction suitable for various industrial setups.

Product Highlights

This IDEC relay is engineered for space efficiency and high performance. It features a robust design that operates efficiently within a temperature range of -25 to 70 degrees Celsius. The compact size facilitates easy installation in tight spaces such as control panels and machinery.

Product Information

Standard Information

• Brand: IDEC
• MPN: RH2B-ULAC110-120V

Technical Specifications

• Contact Configuration: DPDT
• Operating Voltage: 110/120VAC
• Switching Capacity: 10A
• Terminal Type: Plug-In/Blade
• Temperature Range: -25 to 70 degrees Celsius
• Dimensions: 27.5mm W x 21mm D x 35.6mm H
• Standards/Approvals: cURus Listed, CSA Certified, CE Marked, TUV Certified
