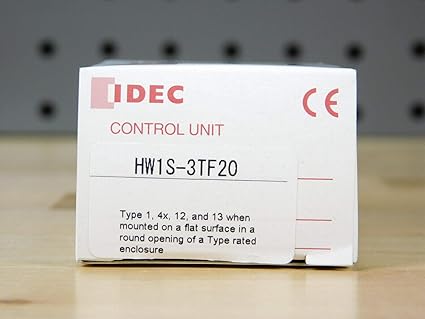

IDEC HW1S-3TF20 Selector Switch 22mm 3 Position Maintained

Product Description

The IDEC HW1S-3TF20 is a selector switch designed for panel mounting, featuring a knob-style actuator with three positions for maintained operation. This product is built for reliability in demanding conditions, making it suitable for various applications.

• Knob-style selector switch with three positions
• DPST-NO contact configuration for effective power control
• IP65 rating ensures dust-tight and water-resistant operation

Product Highlights

This selector switch is ideal for panel applications where space is a concern and durable performance is necessary.

Product Information

Standard Information

• Manufacturer: IDEC
• Series: HW

Technical Specifications

• Product Type: Selector Switch
• Switch Type: Knob
• Number of Positions: 3
• Contact Configuration: 2NO
• Circuit: DPST-NO
• Termination Style: Screw Terminal
• Operating Temperature: -25 °C to 50 °C
• Ingress Protection: IP65
• Mechanical Life: 500,000 Cycles
• Bezel Type: Plastic
• Actuator Type: Push Button
• Current Rating (Amps): 10A AC, 8A DC
• Voltage Rating - AC: 110 V
• Voltage Rating - DC: 24 V
• Panel Cutout Dimensions: Circular - 22.30mm Diameter
• Depth Behind Flange: 48.50mm
• Approval Agency: CCC, CE, CSA, TUV, UL
