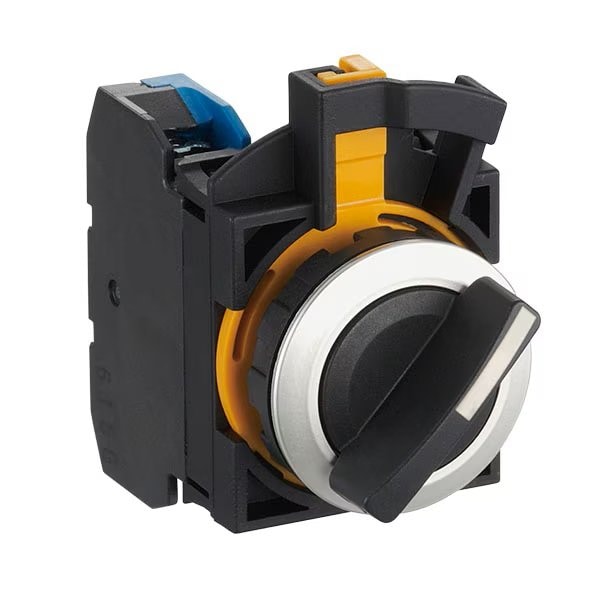

Idec CW4S-3E40 Selector Switch 22mm 3-Position

Product Description

The IDEC CW4S-3E40 is a selector switch with a 22mm mounting hole. It features a 2-stage contact block that can contain 2 contacts, allowing for a 4-contact configuration with insulation between the contacts. The selector switch has a 3-position maintained spring return and silver contacts.

• 2-stage contact block allows for a 4-contact configuration.
• Panel depth of 39.9mm with a 1-stage contact block, 59.9mm with a 2-stage contact block.
• 3rd generation safety structure with 2-action release and integrated guard.

Product Highlights

The IDEC CW4S-3E40 selector switch offers a compact design and enhanced safety features for various control panel applications.

Product Information

Standard Information

• Brand: IDEC
• Manufacturer Part Number: CW4S-3E40
• Country of Origin: Unknown

Technical Specifications

• Button Type: Knob
• Degree of Protection: IP67
• Number Of Positions: 3
• Operator Position Angle: 45
• Spring Return: Maintained
• Terminal Shape: M3.5 Screw Terminal
• Contact Configuration: 4A
• Contact Specifications: Silver Contacts
• Mounting Hole Size: 22mm
• Category: Switches
• Selector Switches: Selector Switches
• Packaging: Bulk
• Manufacturer: IDEC
• Part Status: Active
• Contact Rating: 10A
• UL Type: 4X rating
• Mounting Hole: 22.3mm compliant with IEC 60947-5-1
