IDEC CW4P-1EQHR Pilot Light 22 mm Red 120 VAC

Product Description

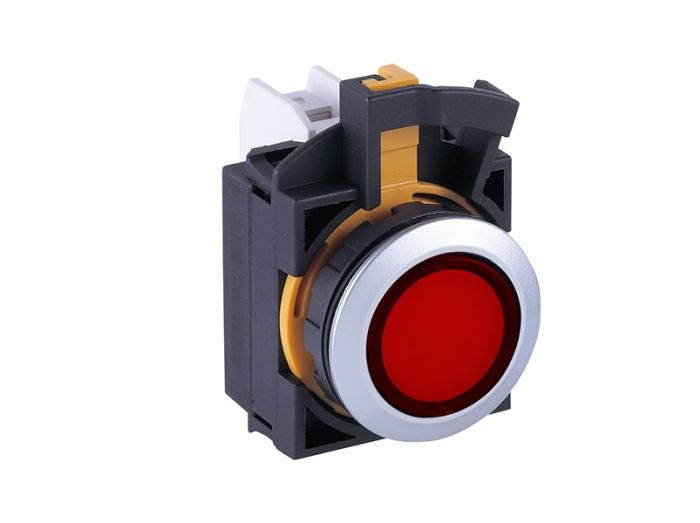

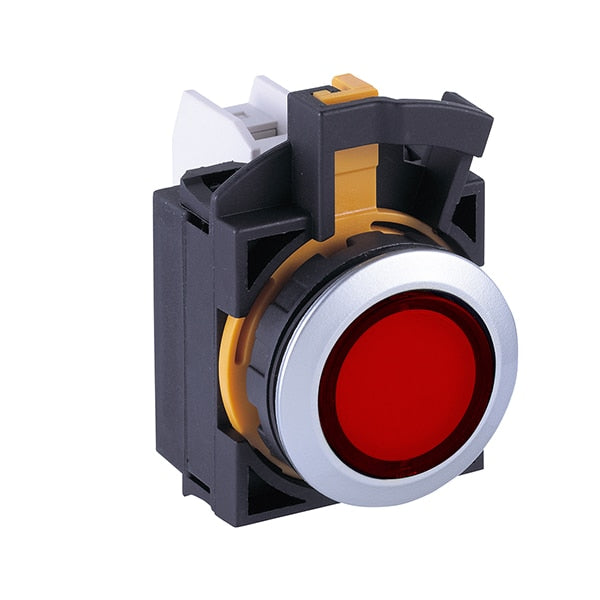

The IDEC CW4P-1EQHR is a pilot light suitable for industrial signaling. It is designed to fit a standard 22mm panel cutout and is constructed with a metallic bezel. This pilot light uses LED technology to provide illumination and has a round, flush lens. The unit connects with screw terminals for electrical connections and operates at 120 VAC, emitting a red light for clear operational status.

• Metallic bezel for durability.
• LED light source for reliable illumination.
• Screw terminals for secure and easy connection.

Product Highlights

Ideal for industrial use, the CW4P-1EQHR provides visual indication of operational status in machines and control panels.

Product Information

Standard Information

• Manufacturer Part Number: CW4P-1EQHR
• Manufacturer: IDEC

Technical Specifications

• Product Series: CW
• Product Type: Pilot Light
• Mounting: 22 mm
• Light Source: LED
• Lens Color: Red
• Bezel: Metal Round
• Nominal Lamp Voltage: 120 VAC
• Protection Rating: IP65
• Approvals: CE, cUL, UL
• Terminal Shape: Screw terminal
• Height: 41.4 mm
• Width: 30 mm
• Depth: 42.4 mm
• Net Weight: 0.0629 lbs
