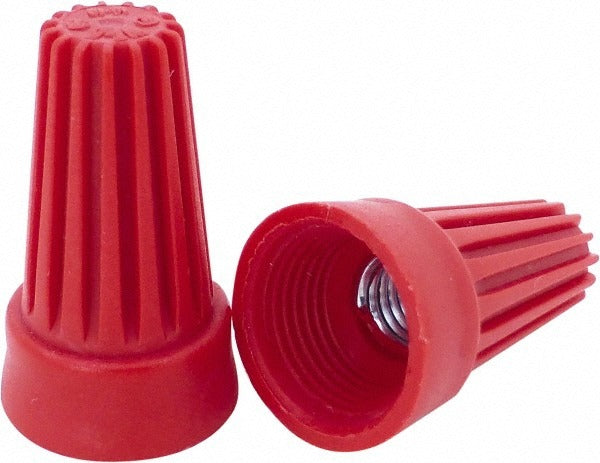

Ideal WT6-1 Twist-on Wire Connector Red 600V 100-pack

Product Description

The IDEAL WT6-1 is a standard twist-on wire connector designed for making secure, insulated splices in branch circuit and fixture wiring. The red, flame-retardant shell resists ignition and helps contain heat in the event of a fault. Rated for 600 volts and a maximum operating temperature of 221 degrees F, these connectors are suited for residential, commercial, and light industrial wiring work. Each package contains 100 connectors, making them a practical choice for volume electrical work. Licensed electricians and journeymen install these during panel work, fixture hanging, device replacement, and general branch circuit splicing.

These connectors are used in standard wire termination tasks where a reliable, code-compliant twist-on splice is required. Typical applications include junction box splicing, fixture connections, and device wiring in residential and commercial construction or service work. The red color coding corresponds to a minimum compatible wire size of 2 AWG, helping technicians select the correct connector quickly during installation. The package quantity of 100 units suits service vans, rough-in crews, and maintenance shops that work through connectors at volume.

Key Features

• Flame-retardant shell rated to 221 degrees F maximum operating temperature
• 600-volt rating suitable for standard branch circuit applications
• Red color coding identifies minimum compatible wire size of 2 AWG
• Meets UL Listed 486C, UL Listed 774A, CSA C22.2 No. 188, CSA LR9706, and RoHS requirements
• Packaged in quantities of 100 for high-volume electrical work

Compatibility

Designed as a standard twist-on wire connector for use in residential, commercial, and light industrial electrical splicing applications where a 600-volt, flame-retardant connector is required.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize and verify the circuit is dead with a calibrated tester before making or breaking any splice. Strip conductors to the appropriate length, insert into the connector, and twist clockwise until the connector is snug and no bare conductor is exposed at the base. Do not overtighten to the point of cracking the shell, and do not use connectors on conductors outside the rated wire size range.
