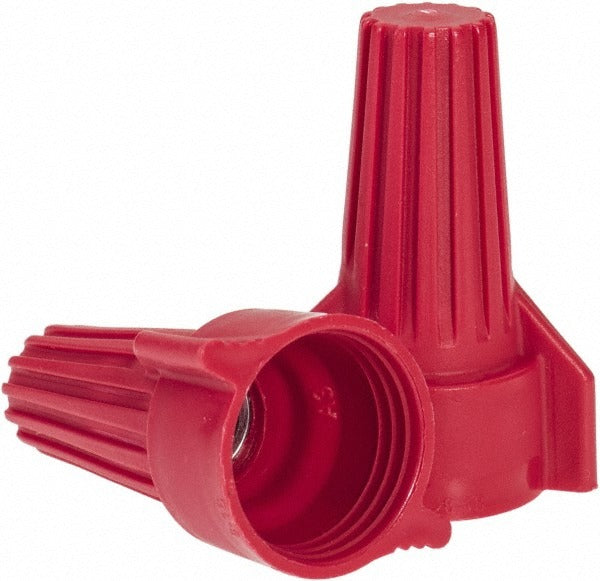

Ideal WT52-B Wing Twist-on Wire Connector 600V 500 Pack

Product Description

The IDEAL WT52-B is a wing-style twist-on wire connector rated for 600 volts and designed for fast, reliable wire terminations in electrical installations. The red, flame-retardant shell provides a visual wire-gauge reference and an added layer of safety in enclosed junction boxes, panels, and conduit bodies. Compatible with wire sizes down to 2 AWG, the WT52-B handles the range of conductor combinations common in residential and light commercial wiring. The maximum operating temperature of 221 degrees F makes it suitable for use near heat-producing equipment. Electricians rely on this connector for code-compliant splices without tools beyond hand tightening.

The IDEAL WT52-B is used across residential, commercial, and light industrial electrical work wherever twist-on wire connectors are specified. Typical applications include junction box splices, fixture connections, device pigtails, and panel tap connections. The wing ears allow one-handed application and added torque without a separate tool, which speeds up high-volume rough-in and trim-out work. This 500-count package is sized for contractors and service shops that run through connectors in volume on multi-unit or commercial jobs.

Key Features

• Wing design allows hand-tightening without additional tools, improving installation speed
• Flame-retardant shell meets UL and CSA requirements for enclosed electrical assemblies
• 600-volt rating covers standard branch circuit and fixture wiring applications
• 221 degrees F maximum operating temperature suitable for use near heat sources
• Red color coding provides quick visual identification of compatible wire gauge range
• 500-count packaging suited for contractor-volume use on large or multi-unit projects

Compatibility

Designed for use with copper conductors starting at 2 AWG minimum, consistent with standard twist-on wire connector applications in branch circuit and fixture wiring. Verify the connector's wire range chart for the full range of compatible conductor combinations before installation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) and applicable local codes. Always de-energize and lock out the circuit at the panel before making or disturbing any wire connections. Insert conductors fully into the connector before twisting, and verify a firm mechanical connection with a gentle pull test on each conductor. Do not overtighten or use power tools to apply twist-on connectors, as this can damage the shell or compromise the connection.
