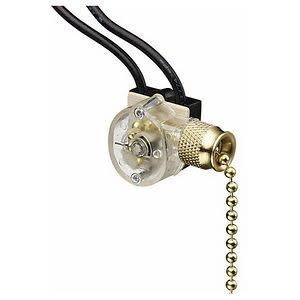

Ideal Industries 774031 Pull Chain Switch 125/250 VAC 2-Wire Circuit

Product Description

The Ideal Industries Pull Chain Switch, MPN 774031, is a reliable device designed for controlling electrical fixtures. This pull chain switch operates at a voltage of 125/250 VAC and supports an amperage of three amps. The switch features wire leads that facilitate easy connections, making it suitable for use in various applications including ceiling fixtures, lamps, and fans.

• Rated for 3/6 Amps at 125/250 VAC
• Nickel-plated for durability
• Includes six inches of #18 AWG wire leads

Product Highlights

This switch is designed for easy installation with push-in connectors for quick connections to the wire leads. It is compact, measuring 0.92 inches in length, 0.88 inches in width, and 0.67 inches in height. The mounting requires a 13/32 inch diameter hole, suitable for various mounting surfaces.

Product Information

Standard Information

• Brand: Ideal Industries
• Type: Pull, On-Off

Technical Specifications

• Voltage Rating: 125/250 VAC
• Amperage Rating: 3 Amp
• Dimensions: 0.92 in L x 0.88 in W x 0.67 in H
• Connection Type: 2 Position - 2 Wire Circuit
• Number of Poles: 1
• Actuator: Pull Chain
• Standards: CSA, RU Listed, RoHS Compliant
